automatic rotary aluminum caps screw capping machine ROPP capper equipment single head rotary star wheel machinery
automatic rotary aluminum caps screw capping machine ROPP capper equipment single head rotary star wheel machinery
Model YX-AC40 automatic ROPP aluminum caps capping equipment automatic
Supply powder (V/Hz) AC 220/50 380/60
Capacity (m/min) ≧40B/M
Cap size (mm) 250-1000
Application Alum-caps
Air exhaust from Vacuum pum (m3/h) 5KG
Outer dimension(L×W×H)(mm) 2000×1000×2300
N.G (kg) 520
Description

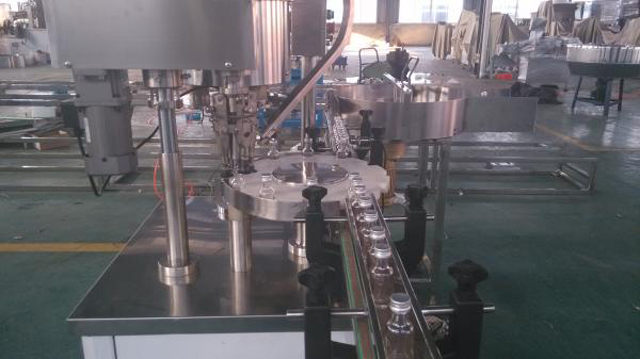

YX-AC40 Automatic ROPP capping machine for olive bottle with metal caps

ROPP capping.jpg

automatic ROPP capping machine with button controlling system

CAPPING head.jpg

Capping heads for ROPP capper

The capping machine is a suitable equipment for roll-press-sealing the Aluminum caps for the plastic bottle、pet bottle、as well as glass bottle.It precesses the screw-press capping for the bottle under the rolling press from hobs,automatically feeding bottle、caps,removing the reverse caps .The capped bottle favors the characteristics like the stable capping effect,convenient uncapping,so that it function as conterfeit and anti-theft

capping machine for bottles.jpg

Model YX-AC40

Supply powder (V/Hz)     AC 220/50  380/60

Capacity (m/min)  ≧40B/M

Cap size (mm) 250-1000

Application       Alum-caps

Air exhaust from Vacuum pum (m3/h)   5KG

Outer dimension(L×W×H)(mm)        2000×1000×2300

N.G (kg) 520

ROPP caps capping.jpg

Drawing of ROPP capping working process

drawing of capping machinery.jpg

How to operate model YX-AC40 Single head ROPP capping machine

The feed container moving on conveyor belt are feed into an in feed star wheel through In-feed worm, star wheel bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of threading & sealing.

ropp_cap_sealing_machine_bottle_capper_machine_with_single_h

Salient Features :
The unit is made compact & versatile.
S.S. Slat conveyor
S.S. Elegantly Matt Finished Body
Built in front control panel
Vibratory Bowl
With A/c Frequency Drive

ROPP capping machine applied for the Olive production line:

ROPP caps in different sizes for Screw capping

ROPP caps Aluminum.jpg

Wooden case packing for ROPP capping

wooden crate for ROPP CAPPING machines.jpg

Guarantee: for all the machine, it claims one year for guarantee.

(Excluded from the warranty are problems due to accidents,misuse ,

misapplication, storage damage, negligence,or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,

if you need,our technician will go to your place to install and test the machine and

also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country)

should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician

will go to your place to fixed the machine as soon as possible. The cost should be in your account.
