plastic laminated collapsible squeeze tubes ultrasonic film hot sealing machine semi automatic ultrasound technology sealer equipment
plastic laminated collapsible squeeze tubes ultrasonic film hot sealing machine semi automatic ultrasound technology sealer equipment
Items Model YX-006
Frequency: 20Khz
Ultrasonic power:1500W
Power Voltage AC220V/50Hz/Single phase
Output power 1200W
Length of tube 50-250mm
sealing Dia 10-80 mm
Time adjust: Electronic adjust
N.W/G.W 110KGS/126KGS
H.S code: 8515800090
Pack size 1050¡Á760¡Á790mm(0.33 CBM)
Pack Plywood wooden case
Description

The Ultrasonic sealing machine model YX-006 is linked with ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear and include radii or small plateaus. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.

Category of this article(Simple click for easier navigation)

1.What is the Ultrasonic Sealer& Hot Air Sealer;



2. Drawing of ultrasonic sealer;



3.Functions of ultrasonic sealer;



4.Wooden case packaging for sealer;



5.Spare parts for ultrasonic sealer;



6.Parameters of model YX-006 sealer;



7.FAQ about tube sealer;



8.Video about how to install stamp slugs in the mould &solve the issue OSC Overload

Ultrasonic sealing is particularly well suited for:

►Thermoplastic films (pouches and bags) Tubes, trays, and cups

►Tubes, trays, and cups

►Cardboard packaging with thermoplastic coating

►Valves and vents on films / filter materials

►Screw caps on coated cardboard packaging / films


When choosing tube filling equipment for plastic tubes, it is very important to understand the various types of tube sealing options available.  Tube filling machinery comes with hot-air sealing, ultrasonic sealing, impulse sealing or hot-jaw sealing options.  Matching the type of squeeze tube with the correct tube sealing equipment is very important to ensure strong, professional tube seals.  Each tube material behaves differently so what works well for a mono layer polyethylene cosmetic tube, may not work so well with a multi-layer COEX tube.  Depending on the industry for a given product, such as cosmetic tubes, personal care tubes, pharmaceutical tubes, or household & industrial tubes, choosing the correct tube filling & sealing equipment can be challenging.  Lets take a look at the two most popular options currently used in the tube packaging industry today.

Hot Air Tube Sealers

hot-air-tube-sealing.jpgThe most popular tube sealing machinery option is hot-air tube sealing.  With this system hot air is generated and blown into the open end of the plastic or laminate tube.  This heated air penetrates the plastic tube wall heating the material enough to make it soft and pliable.  A set of tube sealing jaws then crimps the softened plastic to weld the open end closed.  The primary advantage of this tube sealing technology is it’s speed.  Another advantage is hot air sealers work with the largest range of laminate or plastic tubes.  Whether the tube material is LDPE, MDPE, HDPE, PP, Mono layer or multi-layer with or without EVOH barrier protection, hot air tube sealing should work.  A disadvantage however is the need for specific hot air nozzles sized to each diameter tube that is filled and sealed.  This will add to the cost of change parts needed for the tube run.  The cost of format parts are minimal however when factored over the production run size at higher throughput.  We recommend this style of tube filler if the production run sizes are greater than 20,000 tubes.

Ultrasonic Tube Sealers

Ultrasonic Tube SealerUltrasonic tube sealing is another popular option found in the packaging industry today.  Standalone tube sealers using ultrasonics are popular for small volume tube runs.  Tube filling machinery can also be retrofitted with ultrasonic tube sealing systems as an alternative to hot air sealing.  With ultrasonic tube sealing, plastic and laminate tubes are sealed by high frequency vibration of an ultrasonic sealing horn.  This high frequency vibration generates intense heat at the tube wall which causes the polyethylene tube plastic to soften.  The open end of the plastic tube is held closed under pressure from the sealing horn and matching sealing anvil, thus forming a strong weld.  Advantages of sealing tubes with ultrasonic technology are the ease of use, no need for custom-made size parts, and ability to seal through product contamination in the seal area such as happens when overfilling a tube with product.  The disadvantage however is lower tube sealing speed compared to hot-air sealing.As far as our ultrasonic sealing machine model YX-006 is concerned,the basic information given as below:

 Model YX-006 Ultrasonic Plastic Tube Sealer can weld the tail of soft tube. It's wildly used in cosmetic, toothpaste, commodity, medicine, chemical, and other types of tube tail sealing.

The model YX-006 Ultrasound tubes sealer machine is the products latest developed from our factory .Compared with the model YX-005 which is also one of the best-selling sealing machine

from china manufacturer ,the model YX-006 is prior in advantage in stability opeation/ easier maintenance as well as appeance with PLC touch screen controlling system .

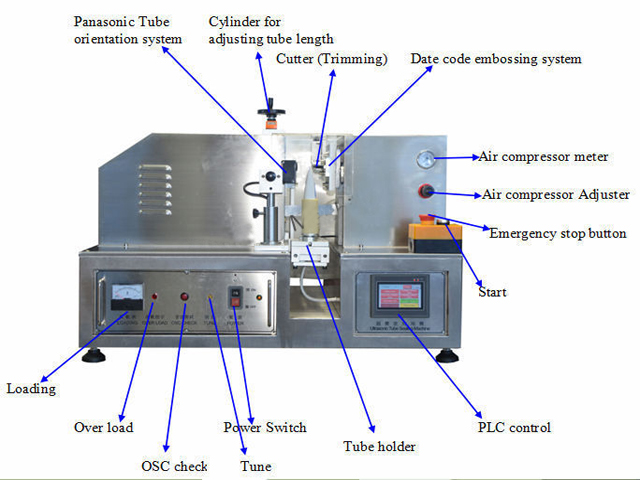

As below is the latest sealing machine stainless steel ultrasonic tubes sealing machines model YX-006

plc sealer ultrasound (1).jpg

plc sealer ultrasound (3).jpg

plc sealer ultrasound (3).jpg

►drawing of Ultrasonic Tube Sealer model YX-005 With button controlling system old version sealing machine:



Ultrasonic Tube Sealer

Ultrasonic tubes sealing machine model YX-006 Added with protective chamber

new zealand customer for ultrasonic tubes sealer (2).jpg



Special  Function of Ultrasonic Tube Sealer

Ultrasonic Tube Sealer

►Main features

1. Easy to operate and maintain.

2.Automatic positioning, welding, cutting and trimming, printing code in one time.
3.. Stainless steel machine body, strong and beautiful,

4,The machine small enough to be put on worktable.

5. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
6. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
7. Ultrasonic frequency can meet international standard, no harmful to human being or environment

8. Ultrasonic Tube Sealer can be work in time, not need wait the heat time .

5.  Ultrasonic Tube Sealer Package :

ultrasonic tubes sealing equipment.jpg

►Spare parts list from Model YX-006 Ultrasonic tubes sealing machine :

spare parts for ultrasonic sealing.jpg

printer and mold.jpg

►Basic parameter of model YX-006 Plastic tubes sealer equipment semi automatic:

tube holders for sealing machine.jpg

Items

Parameter

Model

YX-006

Frequency:

20Khz

Ultrasonic power:

1500W

Power Voltage

 AC220V/50Hz

Output power

1200W

Length of tube

50-250mm

   sealing Dia

10-80 mm

Time adjust:

Electronic adjust

N.W/G.W

110KGS/126KGS

H.S code:

 8515800090

Pack size

1050×760×790mm(0.33 CBM)

Pack

Plywood wooden case



































new zealand customer for ultrasonic tubes sealer (2).jpg

Application: toothpaste, cosmetics, medicines, food, industrial supplies,

tubes samples from ultrasonic.jpg

tubes sealing from thailand customer.jpg

tubes samples from ultrasonic.jpg



ultrasonic tubes sealer machines.jpg

plc sealer ultrasound (3).jpg

►FAQ about ultrasonic tubes sealing machine model YX-006

1.If i order this machine , how to operation it ?

Answer:  Ultrasonic Tube Sealer  is easy and simple operation, you just connect the electricity , and air compress machine

2.About Guarantee:

Answer: one year. The supplier can replace only the elements that are imperfect for material or handwork. Replacement is free. All imperfect elements have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts. Replacement handwork is excluded and it will be done by the buyer. The supplier is not responsible for any rewards for, damages or last earnings met by buyer. Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.

3.Do you have other model ?

Answer: Of course . we have semi-automatic type (YX-006) and Automatic filling and sealing machine for you .Please view our Home page .

4.What is the power supply?

Answer : we can design according to your inquiry . usually it is :220V/ 1 phase . 110V/single phase.

5.Is this machine need mould ?

Answer: yes it need mould . The machine will one pc welding mould free in charge.

►Shipping &delivery for PENGLAI SEALING Machines

shipping for mixing filler equipment.jpg

How to install stamp slug in the sealing mould &Solve the problem of OSC overload:
