As follow there given the description on the machines purchased respectively

The machine labeller two heads is applicable for the lids and bottles jars labeling and packaging,which should meet the requirements given below:

Machine application

1. Specially attach the cover (requires front-end lower cover system + rear-end cover system, the cover is the kind that is sunken, see the picture on the right)

2. Round bottle top labeling + bottle body labeling (requirements A. Equipped with bottle feeding carousel + bottle closing carousel B. The machine needs to be enlarged to adapt to the bottle diameter of 30mm-160mm)

3. Specially applied to round bottles.

4. The machine needs to be equipped with a coding machine

5. The size of the customer's elevator is 1.75*1.1m and needs to be dismantled to provide guidance for entering the elevator.

1.Basic function of sticker labeling machine
2.Mechanism of two heads labeling machine
3.Details illustration of labeling machine
4.Electric part explanation of two heads labeler
5.Screen setting for automatic bottle labeling machine
6.How to adjust the labeling machine
7.Sensor setup for bottles and lids labeling machine
8.Operation of sticker labeling machine automatic
9.Trouble shooting of sticker labeling machine bottles and lids label applicator

Machine basic parameters of model YX-630AA sticker labeling machine two heads labeller:

BOTTLES jars labeling machine.jpg

details of labeling machine (2).jpg

electric cabinet.jpg

Labeling precision: ±1mm (Errors of products and labels are not included.) and adjustment level will

influence labeling precision obviously;

Labeling speed: 20¡«45 pcs/min (related with product label dimensions).

Applicable product: containers provided by customer.

Applicable label: rolled label provided by customer.

Machine dimension: 2250×1310×1520mm (length×width×height).

Applicable power: 220ACV 50/60HZ.

Weight 754KG

What is the labeling machine:

labeling machine what it is.jpg

The labeler machine is a device for attaching a roll of self-adhesive paper label or other suitable material to a product or a prescribed package,which is widely used in various industries such as electronics, furniture, beverage, daily chemical, food, medicine, petrochemical, etc.

Labeling of product packaging containers and packaging boxes. Automatic labeling machine equipment plays an important role in various industries. The machine's own structure is perfect, and the all stainless-steel material makes it easier to store and prevent equipment from getting wet and rusting.

The principle of the labeling machine is that the item is fed to the labeling working station at a constant speed on the conveyor. The mechanical fixture separates the items a fixed distance and pushes the item in the direction of the conveyor.

It has a drive wheel, a labeling wheel and a reel. The drive wheel intermittently drags the label strip movement such that the label strip is pulled out of the spool while the label strip is pressed against the article by the labeler wheel. An open-loop displacement control is used on the reel to maintain the tension of the label strips

because the label strips are connected to each other. The label belt is continuously stopped and stopped so that the label tape is attached to the article with the labeling wheel moving at the same speed as the article. When the conveyor reaches a certain position, the label drive wheel accelerates to the speed at which the belt matches. And after the label is attached, it decelerates to a stop.

Since the label may slip slightly, it has a mark on it to ensure that each label is placed correctly, which is read by a optical sensor. During the deceleration phase of the label, the drive wheel will re-adjust the position to correct any errors on the label.

Bottles and lids samples sent from Customer

top and wrap labeling (1).jpg

glass bottles labeler.jpg

Sample size (see actual sample for details)
1. Jar diameter 70mm, height 96mm (top label diameter 55mm. bottle label 160*40mm)
2. Bottle No. 1, diameter 70mm, height 330mm, label 230*106mm
3. Bottle No. 2, diameter 50mm, height 230mm, bottle label 170*70mm
Voltage: 230V 50HZ single compartment electricity Swiss standard plug

Instruction Manual
Equipment Designation: Automatic Vertical
Part I Statement
I. Regular Items
This labeling machine is non-standard equipment and needs certain techniques to operate it. Or the
high efficiency or normal use of the machine will be affected. The operation of this labeling machine
must be complemented by a trained technician.
The operations of this equipment should be accord with the instruction manual or under the
instructions from the technicians from our company.
This instruction manual is applied to T-21200 labeling machine (Abbreviation is labeling machine in
the following sections.). The purpose is to ensure the normal use and adjustment of this machine.
II. Company Rights
This equipment is developed and manufactured by Our company. Our Company reserves the following
authorities:
In order to maintain the technical advantages and applicability of the machine, our company can
update mechanical parts, electro-control components and software, including the structure, type and
brand of the components used, but free updates for the machines already sold are not promised.
The Our company has the rights to require that the machine being kept integrally. Without the
technical instructions from the technicians from our company, the modifications to the mechanical,
electrical or control parts are not allowed. Or the related damages should be paid by the party which
violated the rule.
Our company provides related technical instructions for adding code or other functions based on this
machine, but not responsible for the related components.
The intellectual property right of this machine and this instruction manual is belonging to our
company. Any plagiarism must bear legal liability
III. Safety Items
Danger! Make sure the machine in operation is earthed to the ground to prevent electrical shock.
Danger! Make sure the voltage is not overloaded.
Warning! The operations to the electrical boxes and circuits should be under the instructions from
electrical technicians or professional personnel.¡£
Warning! Pay attention to the rotating parts to prevent compression crush.
IV. Operation Rights
Make sure operation, location and maintenance of this machine must be performed by trained and
authorized personnel.
Only allow certified or professional personnel and equipment engineer to accomplish the layout.
Operation to the machine needs to make sure:
——Operator is trained professionally and certified by our company.
——Operator has the knowledge to repair or deal with basic malfunctions during the process
of the machine operation.
——Work according to the requirements in this manual in the operation to this machine.
V. Operation Environment
 Do not use under following circumstances:
 Severe temperature variation.
 Humidity or high moisture.
 Intensely vibration and shock
 Too much dust
 Water, oil and chemicals spray
 Explosive, flammable, and dangerous things
VI. Tune-in Period
This labeling machine is made based on customer’s products specifically and is not standard
equipment, has technical and experience requirements to operators, and needs one month duration to tune
in. In tune in period, if the technical parameters are not achieved in equipment operations, feedback to our
company to get technical support.

Part Two Machine Introduction

I. Basic Function:

This labeling machine is specifically designed, has the characteristic of uniqueness and is used for
labeling on circumference and top of the cylinder or on assigned position (labeling on assigned position
needs to add accessories). When getting familiar with the machine, the machine can be also used for
labeling on round container in other industries, such as canned food, round container for tinned food,
cosmetics, medicine and so on.



II. Technical Parameters of labeling machine(see the above-mentioned)

III. Label recovering process description:
Place container →separate container→ conveyor→ product detection→ Label recovering→ Collect
container.
1. Place product on the transportation belt.
2. Container separating mechanism separates the containers in certain distance.
3. Under the dragging of the transportation belt, the container runs to the right side of the labeling
mechanism automatically.
4.Container comes to the detected position and be detected by the electrical sensor which will
feedback signals to PLC.
5. Traction motor rotates, sends out and pastes label on the product.
6. Labeling recovering mechanism twists and rolls label on the container.
7. Containers are transported and collected in the collecting container.

Part Three Mechanism



I. Overall view
Mechanical structures and functions of each part are indicated in following picture:
[Equipment 3D Model]

drawing of sticker labeler.jpg
(1) Feeding and bottle handling mechanism: conveying products to and its conveying line.
(2) Bottle receiving mechanism: receiving and sorting the processed products.
(3) Dividing mechanism: dividing and labeling disk materials.
(4) The bottle separating mechanism separates the round bottle products and opens the distance.
(5) 1# head to label the upper plane of the product.
(6) 2# head to label the side of the product.
(7) Display screen for human-computer interaction.
(8) The receiving mechanism receives the disc products.
(9) Power supply emergency stop: press the button and the equipment will be powered off for emergency
stop.
(10)Installation position of electric box and equipment circuit part.



II. Details view



labeling heads.jpg
1. [Labeling Head]
1) Material placing mechanism: used to put label in rolls.
2) Brake: used to stop labels to keep label from loose and keep the tension force of the belt.
3) Roller: wind labels to keep tension force of the label.
4) Press mechanism: press label tightly.
5) Electric sensor frame: install label identification electric sensor and move it forth and back.
6) Dispenser board: spilt label.
7) Traction mechanism: drag base paper of the label strip, and provide power to split label.
8)  Material collecting mechanism: recycle the label base paper.

2. Product detection electric sensor frame
electric sensor.jpg

[Product detection electric sensor frame]

1) Product detection electric sensor: direct correlation optical fibers: one emits signals, and the other
optical fiber receives signals. Detect objects existing or not by partition of the signals.
2) Positioning electric sensor: diffused reflection optical fiber, to position the labeling, to detect the
existence of the product by the changes of the diffused reflection.
3. Adjustment mechanism:

adjustment mechanism.jpg

Adjust all adjustment mechanism. Related locking screws must be loosed first. Tighten locking screws
after adjustment to keep fixation.

1) Forward and backward adjustment lever: adjust the labeling head forward and backward with the
end of hand wheel.
2) Left and right adjustment lever: adjust the position of the labeling head left and right with the end of
hand wheel.
3) Left and right inclination adjustment: adjust parallelism between labeling head and transportation
belt by the hand wheel.
4) Forward and backward inclination adjustment: adjust parallelism between labeling head and
transportation belt by the hand wheel.
5) Up and down adjustment: adjust labeling head up and down by the hand wheel on the top.
6) Label identification electric sensor adjustment: release the 5-start wheel to the position the electric
sensor left and right and up and down.
7) Dispenser board angle adjustment: swing the angle of the dispenser board by loosening relative
positioning screws.
4. Positioning mechanism

positioning mechanism.jpg
1)  Forward and backward adjustment: adjust the positioning mechanism forward and backward by
adjusting the hand wheel on the top.
2 Forward and backward adjustment: adjust the positioning mechanism forward and backward by
adjusting the hand wheel on the top.
2)  Up and down adjustment: adjust the positioning mechanism up and down by adjusting the hand
wheel on the top.

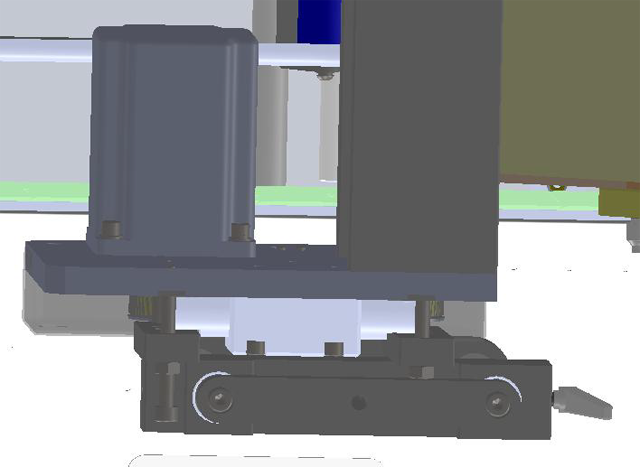

5. Label recovering mechanism

labeling recovering.jpg
1£© Inclination adjustment: screw out (screw in) the 2 screws at the front and screw in (screw out) the 2
screws at the back to adjust the angle between label recovering mechanism and transportation belt.
6.Distributing mechanism

distribution mechanism.jpg
1. Distributing and discharging cylinder:
responsible for discharging the products inside the hopper one by one
2.Material distribution clamping
cylinder: be responsible for clamping other products when the material is discharged by the discharge
cylinder.

Part Four Electrical Part

I. Electrical control principle:



electric controlling principle.jpg
Input signals are product detection signal, labeling detection and label identification signal, after
processed in PLC, output signal is the control signals of traction motor and electromagnetic valve to
control the flex of the controlling cylinder and traction motor, to finish the positioning labeling of the
products.

II. Human-machine control interface

1. Start screen: start touch screen of the labeling machine and enter this screen

Click ‘ENTER SYSTEM’ to enter working screen or automatically after 5 seconds.
2. Automatic screen:
¡¾Automatic screen]



auto screen.jpg

Output count: counts the production quantity
Function selection: select whether each station participates in the work during automatic operation.
Start: start the machine and start automatic operation.
Stop: end automatic operation.
Clear: clear the production count.
touch screen 1.jpg
This screen used for commissioning of the equipment, test each actions and assist mechanical mechanism
adjustment.
1# bidding: after clicking, the 1# bidding motor runs.
2# marking positioning: after clicking, the 1# marking motor will produce a complete label.
1# blowing: click the rear 1# blowing solenoid valve to start blowing.
1# vacuum: click the rear 1# vacuum solenoid valve to open the vacuum.
1# breaking vacuum: after clicking, the 1# breaking vacuum solenoid valve acts.
1 # superscript cylinder: click the next 1# superscript cylinder to act.
1# positioning cylinder: Click to 1# position the cylinder for action.
Bottle splitting motor: Click to rotate the bottle splitting motor.
Material distribution clamping: after clicking, the material distribution clamping cylinder acts.
Dividing and discharging: after clicking, the dividing and discharging cylinder acts.
Coding: Click to start a label coding signal.
Conveying: press and the conveying will run.
Receiving: after pressing, the motor of the receiving mechanism will discharge the material according to
the arrow.
Receiving home position: Click to switch the receiving transposition cylinder to the home position.

Receiving in place: Click to switch the receiving and transposition cylinder to the in place position.
3. screen setting

‘Setting’, click to enter:

Enter automatically after inputting correct password:
screen setting 1.png

screen setting 2.jpg
[Setting screen]

Material distribution clamping in place time: set the time required for the action of material
distribution clamping cylinder in place.

Material distribution clamping return time: set the time required for the return action of material
distribution clamping cylinder.

Time of material distribution and release in place: set the time required for the action of material
release cylinder in place.

Return time of material distribution and release: set the time required for the return action of the
material release cylinder.

Material separation interval: set the material separation interval of the material separation
mechanism.

1 # measuring object delay: set 1# measuring object electric eye to delay a certain time after
detecting materials, and 1# labeling mechanism will work again.

1# air blowing delay: set 1# a certain time delay during standard output before air blowing.

1# positioning in place time: set the time required for 1# product positioning cylinder to move in
place.

1# bidding delay: set a certain time delay for bidding after meeting the bidding conditions.

1# vacuum delay: set 1# the time delay for standard output to be a certain time, and then turn on
the vacuum.
1# delay of standard stopping: when setting 1# standard outgoing, the standard measuring
electric eye will delay for a certain time after detecting the label, and then stop standard outgoing.

1# superscript in place time: set the time required for 1# superscript cylinder in place action.

1 # superscript return time: set the time required for the return action of 1# superscript cylinder.

2 # measured object delay: set 2# a certain time delay after the product is detected.

2# positioning in place time: set 2# the time required for positioning cylinder action.

2#1 marking delay: set 2# station to delay the first label for a certain time for marking.

2#1 standard stopping delay: set the 2# station to stop the standard output after a certain time
delay after the first label is detected.

Bid 2 3# is the same as bid 1.

2 # test material filtering: 2# the material signal detected during the filtering time after the
standard is output is invalid.

1 # test material filtering: 1# after labeling, the material signal detected within the filtering time is
invalid.

1# label output timeout: set 1# the alarm time when no label is detected during label output.
2# label output timeout: set 2# the alarm time when no label is detected during label output.
Empty time: set to stop the machine within a certain time after there is no product, and set 0 to
unlimited empty time.

1# automatic speed of standard output: set the automatic speed of 1# standard output.

2# automatic speed of standard output: set 2# the automatic speed of traction during standard output.

2 # marking speed: set the speed of 2# station marking motor.

1 manual speed of standard output: set 1# inching speed of standard output motor.

2# manual speed of standard output: set 2# inching speed of standard output motor.

Control valve: adjust the air pressure.

air adjusting.jpg

Part Five Adjustment


I. Mechanical adjustment

1. Guiding mechanism:

Adjust orientation mechanism. Move guiding block forth and back according the size of the products to
assure that the products will not go to the wrong direction in transportation. Adjust to let products go
through smoothly and it is well that the misalignment on the 2 sides within 0.5mm.
2. Recovering mechanism:

Adjust the recovering mechanism to make the rubber wheel parallel with the product, which ensure that
the stress on product is even, recovering wheel can touch the label and labeling position is stable.
3. Labeling head:

Related lock screw must be loosed first for each adjustment. Tighten lock screw after adjustment. Adjust
up and down, forth and back by hand wheels. Could be adjusted parallel or rotationally to implement the
adjustment of the labeling position.
4.Label dispenser board:

Adjust label dispenser board, loose the 7 shape handle on the connection mechanism of it, and swing
label dispenser board for a certain angle to match with the product needs. Maybe need to adjust the angle
for smooth label splitting for labels with different thickness and materials.

II. Electric sensor adjustment


The machine has 2 sets of electric sensors: product detection electric sensor and label identification
electric sensor which can be adjusted according to the needs of product detection and label identification.
1. Position adjustment:

Adjust electric sensor frame forth and back or up and down to adapt different products and labels.
Adjustment methods refer to mechanical introduction section.
2. Electric eye setup:

The original electric sensor is MT groove electric sensor. Other label identification or product detection
electric eyes are optional.
2.1 Label identification electric sensor: to detect labels (Only as model introduction, don’t represent real type
of this machine)
leuze eye sensor working.jpg
[German LEUZE GS-63 electric sensor]
2.1.1 LEUZE GS-63 electric sensor adjustment:
Operating Principle Description: To identify the gap between labels depending on different thickness.
(Base on the light penetrating to identify place with and without labels). It is adaptable for paper
labels or other labels with certain thickness.

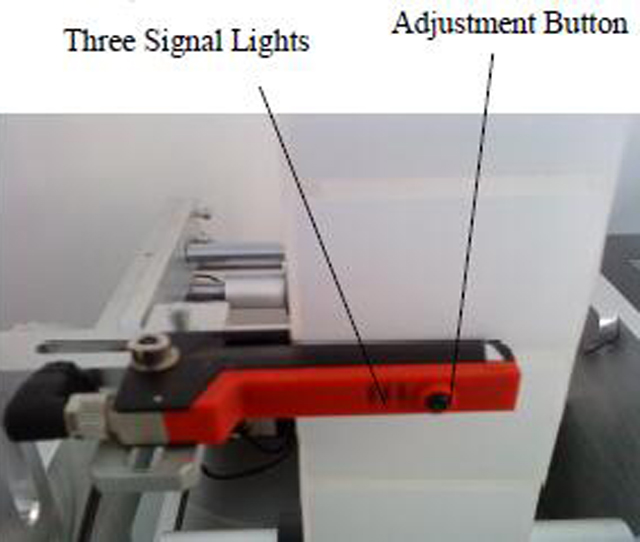

Three signal lights: Green signal light: Power Light

Three Signal Lights

Adjustment Button

Yellow Signal Light: Status indicator light (Yellow light on, indicating signal output)

Yellow Signal Light: Status indicator light (Yellow light on, indicating signal output)

Adjustment Button: adjust to set up different labels detection.



Operation instruction of the electric sensor:
1)  Drag labels to go through the U groove of the electric sensor as shown in the following fig..
2) Dragging labels, yellow signal light is on in the gap between labels and is off at the place with labels,
so it is normal and can be used directly.

3).When yellow signal light is on or off all the times, reset the electric sensor.
4) Methods of setting up electric sensor are as follows:
a. Drag labels through U-shaped groove as demonstrated in the following picture.
b. Put the base paper with label into the groove of electric sensor, press the adjustment button for
3 seconds till yellow signal light blinking, then release button, put the base paper without label
into the groove of electric sensor, press adjustment button for 8 seconds, then release the button.
Then the reset process is completed.
c. Drag the labels in the groove of electric sensor. The yellow signal light is off when base paper
with label going through, and is on when gap between labels going through.
drag the labels.jpg
2.2 Product Detection Electric
sensor: (Only as model introduction, don’t represent real equipment type)
2.2.1 Connection of FX-301 Series electric sensor:

connection of electric sensor.jpg
Product detection electric sensor only can be used via proper connection. Follow the connection
instruction as below. ’in’ connects to black wire, and ’out’ connects silver wire.
/[FX-301 Series electric sensor]

2.2.2 /Product detection electric sensor detecting principle

The product detection electric sensor identifies the object according to light reflection amount. Electric
sensor emits the light to object, object can reflect certain light to electric sensor, when the amount of
reflection light achieves to setting value, electric sensor signal changes and sends signal to control
system.
2.2.3 Status switch

Press ‘mode/cancel’ key, green light switch with ’run’, ’teach’, ’ADJ’ ’L/D’ ’TIMER’ ’PRO’ several
modes, indicating different work status.

􀀀 ’RUN’ means operation status;

􀀀 ’TEACH’ means teaching status;

􀀀 ’ADJ’ means adjustment status;

􀀀 ’L/D’ means Up/Down signal status;

􀀀 Press down ’Push’ key for confirmation, toggling for fine-tuning function.
2.2.4 Product detection electric sensor setup
a When there is no product on the work station, open transparent cover of electric sensor amplifier,
press ‘MODE/CANCEL’ key, and switch to ‘TEACH’ mode. Digital display window shows a value
which is blank signal, as ‘67’ in the picture as below. When the value is stabilized, press ‘PUSH’ to
confirm.
b Then put product on the labeling station, close to left positioning lever, observe position, and locate
the position of label on the product via adjusting the positioning lever.
c After adjusting the position of label, a new value is on the digital display window which is the signal
while detecting the products, like ‘1900’. If the value is stable, press ‘PUSH’ to confirm. After
completing that, digital display shows the ‘GOOD’ tips. (Press ‘MODE/CANCEL’ key back to
‘RUN’ operation status).
d Switch to ‘ADJ’ model. Digital display shows the value=blank signal + (detecting signal-blank
signal)/2. System defaults this value as threshold value. If signal value is greater than threshold
value, it means there is object in default, and less than threshold value, it means on object in default.
Signal feedback to PLC. PLC will send corresponding command. Threshold value is adjustable. Via
toggling the left/right key of ‘PUSH’, you can increase or decrease value, and change the threshold
value (no adjustment required normally).Finally, press ‘PUSH’ to confirm.
e Press ‘MODE/CANCEL’ key, back to ‘RUN’ operation status. (Back to ‘RUN’ operation status after
completing any settings.)
f Close the transparent cover and finish settings.
g When product is put on the labeling position, PRODUCT DETECTION electric sensor detects
signal, and feeds back to PLC. PLC sends command and corresponding parts of labeling machine
start to work.
products detection.jpg
[FX-301 Series electric sensor]



Part Six Operation


I. Winding Label



winding labels.jpg
[Label winding picture]
1. Loose the adjustable handle on the triangle material plate and take out the triangle plate;
2. As indicated on the picture, put in the roll of labels, install the triangle material plate and tighten the
handle.
3.Turn the T shape handle on the traction mechanism for half a cycle in clockwise direction, loose the
traction axis, and loose the manganese shims at the 2 places;
4. Wind the label according to the direction indicated by the red arrow (pay attention to keep the whole label
strip parallel without skew.). Press the manganese shim on the label strip slightly, and then turn the T
shape handle on the traction mechanism for half a cycle in clockwise direction. If the label is pressed in
position, label winding is finished.

II. Mechanical operations

Mechanical operations run usually when the machine is powered on. Adjust in manual status in the assist
of relative movements.
1.Transportation mechanism: Adjust transportation mechanism to make sure products be transmitted to
and sent out the labeling position successfully. Put products to be labeled on the 2 sides of the
transportation mechanism for minor adjustment. Specific operation methods please refer to relative
chapters in ‘Part Five Adjustment’. Adjustments of labeling position and material recycling position
are using similar method.
2. Labeling position adjustment: put products to be labeled under the label dispenser board, adjusting
the labeling head up and down or forth and back, to ensure the label splitting position align with the
label pasting position. Adjust guiding mechanism, to ensure the label pasting on the indicated
position. Use above 2 methods integrally for adjustment.

III. Electrical operations

Connect power→ open 2 emergency switches; start labeling machine→ human-machine interface
setup→start labeling.

Part Seven Routine Maintenance of Equipment
1. Equipment installation and operation environment: room temperature, not suitable to use in high
temperature, humidity and acid-base environment for a long term to avoid the effects of shortening
the operation lifetime, efficiency and precision.
2. Keep clean: clean the mechanism of the equipment after use, eg, friction roller, electrical box and etc.
Alcohol or commercial neutral cleaning liquid could be used for cleaning and maintenance.
3.
Attentions in cleaning:


Do not use cleaning tools which may damage mechanical surface.

 Do not use erosive plastic container.

 Do not use acidic dissolution liquid.

Periodic check and maintenance: check the machine periodically in order to keep the machine work
well, including but not limited to followings:

Clean out the discarded scraps of paper and debris.

Clean out the oil residue from the side of the roller.

Clean the lens of the sensor with soft brush or cloth.


Replace fuse periodically. This equipment uses AC power and a fuse to prevent overload.

Rustproof: Spray rustproof oil on stainless steel and iron parts and rub evenly with soft cloth.

The recommended rustproof oil is rustproof oil.

Part Eight Settlement of Common Malfunctions trouble shooting tips:

1. Base paper broken:
The base paper broken is closely related to the quality of the base paper, scrapping the base paper in the
label traction and label adhesion.
a. Check the base paper damage, if it is cut down, change to base paper with better quality. The
recommended paper is the Gelaxxindi, and requires the label supplier to control the depth of die
cutting.
b. Check the label scratching during winding to eliminate factor of scratching.
c.If label adhesive, it is easily to be broken. Control the output length of the label, and ensure no
adhesion to the labeled products.
2. Labeling deviation more than precision requirement:

label deviation and label strip off position, label strip direction not parallel with product transportation
direction, traction wheel slipping, incorrect detection of product position, label not pasting on the product
aligning with label pasting wheel, product tolerance and so on are the factors needed to be checked and be
solved respectively.




 If label strip is off position, release the traction mechanism and drag the label back and forth to make
it go correctly. After label going correctly, tighten the limit circles at 2 sides and guide out the label.

If label strip direction not parallel with product transportation direction, adjust the inclination of the

labeling head to realize parallelism.

Traction wheel slipping and worn out relate to the clock screw on the traction wheel. The 2 problems
can both be solved by tightening clocking screw.

In product manufacturing process, edge tolerance causes labeling tolerance. Product tolerance can
only be solved by product quality control.
3. Output label continually:
Continuous and incomplete outputs of labels related with the detection sensitivity of the electric sensor
and could be solved by adjusting sensitivity. Detail instructions refer to aforesaid chapter for electric eye
adjustment.
 If it can not be solved after electric eye adjustment, it may be the reason that label is not in detection
scope of the electric eye or it is damaged. Consult our company.

Another reason is that the label strip is off position and is not detected by the electric eye. Adjust the
detection position of the electric eye back and forth.
4. Base paper loose at the position of the label dispenser board

Base paper loose relates to too low traction speed or traction mechanism slipping. If the traction speed is
too low, speed up to solve it;

If the traction mechanism slips, tighten locking screw on the traction axis until base paper not
slipping.

Additionally, pay attention to the transportation belt behind the material recycle shaft broken or not.

Service Commitment
Our Auto Equipment Co.,Ltd provides pre-sales and after sales service in the priority of
customer.
1. Provide professional pre-sales technical advice and guide customers to select proper
models.
2. Provide operation training of the labeling machine and guide customers to use and
maintain the labeling machine properly.
3. Provide technical support services to guide customers to solve the problem of labeling
problems.
4. One year equipment maintenance warranty provides maintenance services.

Thank you for your concern, support and use of Our brand labeling machines. If you are
not satisfied with the quality, performance service and so on, you are welcomed to give your
suggestions. Our’s service department will have a positive response, answer your question
and solve your problem at the first time!

Email us to get the full version of Manual : Lids &bottles sticker labeling machine

®ALL RIGHTS RESERVED by PENGLAI INDUSTRIAL CORPORATION LIMITED
