YX-50 aluminum tube glue filling sealing machine Füll-und Verschließmaschine für Aluminiumrohre
YX-50 aluminum tube glue filling sealing machine Füll-und Verschließmaschine für Aluminiumrohre
Specification of glue filling sealing machine :
1. Power Supply: AC220V±10% 50HZ 2. Work Temp: 5-50℃
3. Filling Quantity: 5-30 5-75 30-150(g)100-200(g)
4. Quantity Error: less than 2% 5. Motor power: 0.75~1.1kw
6. Compressed Air :pressure0.6~0.7Mpa Volume: 0.2m3/min
7. Capacity: 10~50tube/min(adjustable)
8. Dimension: 1500mm×1200mm×1700mm 9. Weight: 300kg
Description

The aluminum tube filling sealing equipment for glue or paste is used mainly to fill liquid material into metal tube with fixed quantity and seal the tube . It is widely used for the packing of products of pharmaceutical, foods, and chemical industry .


Working process of tube filling sealing equipment:

Manually put the metal tubes into the tube-holding base. Change angular potion of each tube by means of mechanical transmission. Photoelectric device is used to detect the position of tube and if there is any tube in right position, the filling system starts to fill the tube with fixed quantity. The tube will then be dual-sealed, and with a number printed on the surface the tube is finally ejected.
Features of alum tube filler sealer:
The machine, with a controllable filling volume or quantity, is featured with a reliable performance performance. The machine is suitable for the filling of metallic tubes of any type because the tube-holding base can be easily replaced in purpose. A perfected and reliable sealing can be reached. The parts which touches material is made of stainless steel

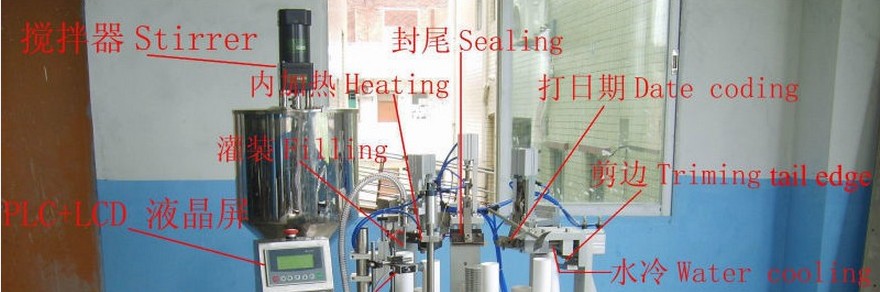

tube filling sealing machine marked.jpg

Specification of glue filling sealing machine :
1. Power Supply: AC220V±10% 50HZ 2. Work Temp: 5-50℃
3. Filling Quantity: 5-30 5-75 30-150(g)100-200(g)
4. Quantity Error: less than 2% 5. Motor power: 0.75~1.1kw
6. Compressed Air :pressure0.6~0.7Mpa Volume: 0.2m³/min
7. Capacity: 10~50tube/min(adjustable)
8. Dimension: 1500mm×1200mm×1700mm 9. Weight: 300kg
SHENZHEN PENGLAI since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about BEST machinery like alum tube filling sealing machine for glue or paste,please email via jackdu999@yahoo.com or browse our website
