Vietnamese customers bought semi auto tubes ultrasonic sealing machine 3 sizes tube filler
Published by: PENGLAI INDUSTRIAL CORPORATION
Date:2023-03-23 12:47:22

Our customers from Vietnam (South-eastern Asia) placed the order on one(1*) pcs of machines: Model YX-UF100B ultrasonic tubes filling and sealing machine semi automatic filler for three sizes of tubes
For all the machines purchased it is clear to confirm all the information on the products so we often ask our customers to freight the samples to test and commission the machines in order that the machines and customer's products gains the best compatibility and adaptability.
After getting the confirmation &samples of the product in sizes and drawing for manufacturing the Tubes filling and sealing machines
we spent only 10 working days finishing everything and made the machines ready after testing them in a satisfactory feedback.
Recently our customers sent us the positive commentar on the machines which keep running very well in their factory ever since the machines arrived their factory.
The machines was shipped via DHL courier to Binh Tri Dong A Ward , Binh Tan District,HCM City .Vietnam. The documentaries certificated with ISO&CO&CE together with other files necessory are sent via DHL to customer for assisting customers to clear the custom.

As below there listed the basic information on the successful transaction between PENGLAI and their Vietnaamese counterpart:

Purchased order issued &Key communiction points During Business Discussion:
PO for filling and sealing tubes machine (2).jpg

PO for filling and sealing tubes machine (1).jpg
Samples sent from customers in South-EASTERN asia:
Tubes samples sent from Vietnamese customer (4).jpg

Tubes samples sent from Vietnamese customer (3).jpg

Tubes samples sent from Vietnamese customer (2).jpg

Tubes samples sent from Vietnamese customer (1).jpg

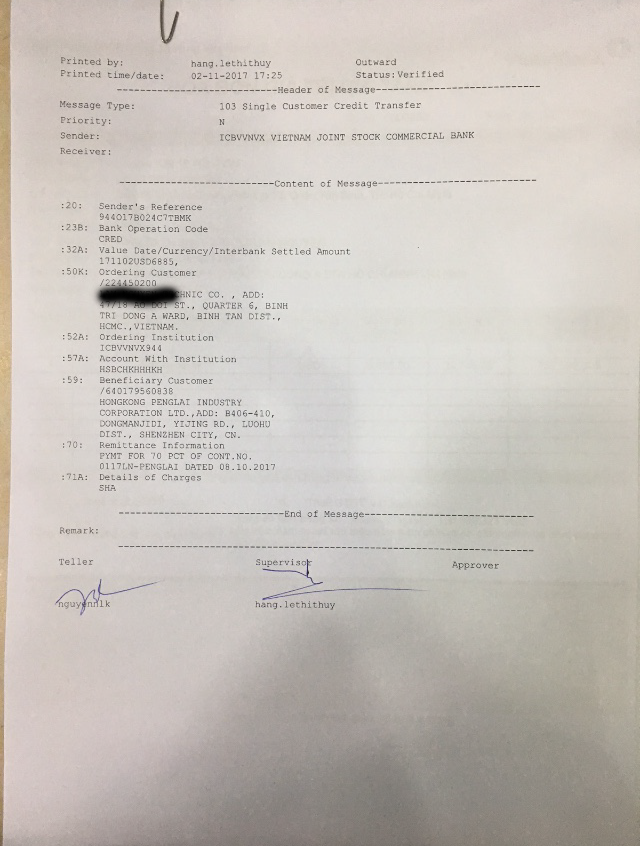

Bank copy of Down&balance payment for purchasing model YX-UF100B semi automatic tubes filling and ultrasonic sealing machine

tube filling sealing down payment.jpg
HSBC Receipt Vietnamese Binh YX-UF100B tubes filler.jpg

balance payment for tube machine.png

HSBC receipt von VN Balance payment YX-UF100B.jpg
Testing videos on Model YX-UF100B tubes filler and ultrasonic sealer machine:

Wooden case packing of model YX-UF100B ultrasonic sealer with filler system semi automatic.

packaging process of ultrasonic machine.jpg

wooden case for filling sealing machine (2).jpg

wooden case for filling sealing machine (1).jpg

size of wooden case of filling sealing machine.jpg

machine loading.jpg

wooden case loading.jpg
As follow there given the description on the machines purchased respectively

The Ultrasonic sealing machine tubes filling equipment model YX-UF100B is linked with ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear and include radii or small plateaus. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.

Ultrasonic sealing is particularly well suited for:

►Thermoplastic films (pouches and bags) Tubes, trays, and cups

►Tubes, trays, and cups

►Cardboard packaging with thermoplastic coating

►Valves and vents on films / filter materials

►Screw caps on coated cardboard packaging / films


When choosing tube filling equipment for plastic tubes, it is very important to understand the various types of tube sealing options available.  Tube filling machinery comes with hot-air sealing, ultrasonic sealing, impulse sealing or hot-jaw sealing options.  Matching the type of squeeze tube with the correct tube sealing equipment is very important to ensure strong, professional tube seals.  Each tube material behaves differently so what works well for a mono layer polyethylene cosmetic tube, may not work so well with a multi-layer COEX tube.  Depending on the industry for a given product, such as cosmetic tubes, personal care tubes, pharmaceutical tubes, or household & industrial tubes, choosing the correct tube filling & sealing equipment can be challenging.  Lets take a look at the two most popular options currently used in the tube packaging industry today.

Hot Air Tube Sealers

hot-air-tube-sealing.jpgThe most popular tube sealing machinery option is hot-air tube sealing.  With this system hot air is generated and blown into the open end of the plastic or laminate tube.  This heated air penetrates the plastic tube wall heating the material enough to make it soft and pliable.  A set of tube sealing jaws then crimps the softened plastic to weld the open end closed.  The primary advantage of this tube sealing technology is it’s speed.  Another advantage is hot air sealers work with the largest range of laminate or plastic tubes.  Whether the tube material is LDPE, MDPE, HDPE, PP, Mono layer or multi-layer with or without EVOH barrier protection, hot air tube sealing should work.  A disadvantage however is the need for specific hot air nozzles sized to each diameter tube that is filled and sealed.  This will add to the cost of change parts needed for the tube run.  The cost of format parts are minimal however when factored over the production run size at higher throughput.  We recommend this style of tube filler if the production run sizes are greater than 20,000 tubes.

Ultrasonic Tube Sealers

Ultrasonic Tube SealerUltrasonic tube sealing is another popular option found in the packaging industry today.  Standalone tube sealers using ultrasonics are popular for small volume tube runs.  Tube filling machinery can also be retrofitted with ultrasonic tube sealing systems as an alternative to hot air sealing.  With ultrasonic tube sealing, plastic and laminate tubes are sealed by high frequency vibration of an ultrasonic sealing horn.  This high frequency vibration generates intense heat at the tube wall which causes the polyethylene tube plastic to soften.  The open end of the plastic tube is held closed under pressure from the sealing horn and matching sealing anvil, thus forming a strong weld.  Advantages of sealing tubes with ultrasonic technology are the ease of use, no need for custom-made size parts, and ability to seal through product contamination in the seal area such as happens when overfilling a tube with product.  The disadvantage however is lower tube sealing speed compared to hot-air sealing.As far as our ultrasonic sealing machine model YX-UF100b is concerned,the basic information given as below:

Plastic composite hose filling and sealing machine made of stainless steel, using the buttons to control the work process: artificial tubes, automatic rotary,quantitative filling, automatically cut off, heating sealing, cut tail, finished exit.

All work using the full cylinder stroke control, easy to adjust filling volume, the filling speed can be adjusted.

It applies to all kinds of plastics and composite hose filling, sealing, date printing, cut tail. Sealing neat appearance, sealing strong, high accuracy, good stability.

Basic parameters of tubes filling sealing machine ultrasonic model YX-UF100B

electric boxes for filling sealing equipment tubes.jpg

ultrasonic sensor.jpg

touch screen controlling system for filler sealer.jpg

back side of tubes filling sealing machine.jpg

Compressed air

Pressure: 0.4-0.6MPA Consumption: 0.3M3/MIN

Scope of work

A type :5-15ML    B type :10-75ML    C-type :20-150ML D-type :50-300ML E-type :100-500ML  F type :200-1000ML

Production capacity

10-80 times / min

Filling accuracy error

<2%

Table adjustable height

100MM

Tank Capacity

20L, 30L, 40L, 50L

Filling the container diameter

according to the material viscosity and filling volume set

*Note: The above parameters for reference only.

The machine constantly upgrades parameters may cause the actual discrepancies, please understand.

How ultrasonic sealing works
how ultrasonic tubes sealing workds.jpg

how ultrasonic tubes sealing works model YX-UF100B.jpg
The Model YX-UF100B ultrasonic tube sealer is designed to be mounted onto virtually all styles of filling machines. As the tube is advanced to the ultrasonic tube sealing station,

a switch closes to initiate the weld cycle. Air is directed into cylinders to advance the weld anvil and ultrasonic horn towards the center line of the tube.

The tube is closed to a preset gap and held for the applica-tion of sonic energy.

An ultrasonic power supply takes the 50/60 Hz electrical energy and converts it to 30,000 cycles per second thorough a power oscillator.

This high frequency electrical energy is applied to the convertor which transforms the electrical current to high frequency mechanical vibrations.

The sonic energy causes the horn to vibrate against the tube end at 30,000 cycles per second.

The intense vibration disperses any contamination from the seal area and generates heat to bond the material.

The energy is then stopped and the tube is held closed for a brief time (typically .05 to .150 seconds).

Then the tube goes to the next station on the filling line. Typically cycle times range from 45 to 80 units per minute, depending on tube diameter and material.

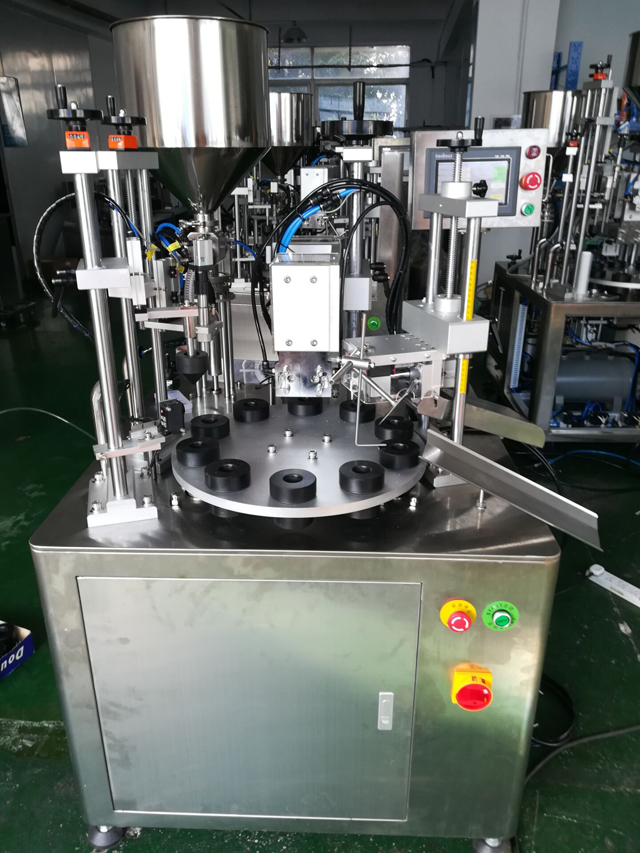

Product Features from model YX-UF100B horizontal filling ultrasonic tubes filling sealing machine

filling hopper for ultrasound sealer filler.jpg

horizontal filling machine for tubes filler sealer.jpg

►The machine can be used for explosion-proof units.

►Mainly used for quantitative filling of water, oil, lotion, paste-like material. According filling needs, adjustable work surface lift.

►Filling volume 5-1000ML, Divided into six series :A, B, C, D, E, F.

►Feeding mode: Normal Gravity / automatic suction type Choose one.

►Control: pneumatic control

Workplace for tubes filling sealing machine semi automatic model YX-UF100B


1.Laboratory

2.Industrial production operations with continuous processing line

Detailed Pictures of filling ultrasonic tubes sealing machine semi automatic model YX-UF100B

rotary filling ultrasonic tubes sealing.jpg

pneumatic part for filling sealing machine.jpg

ultrasonic sealing filling for tubes paste.jpg


Tubes samples of filling sealing machine semi automatic model YX-100B

tubes samples from model YX-UF100B filler sealer.jpg

sealed tubes (3) samples.jpg

Wooden case packaging for model YX-UF100B ultrasonic tubes sealing machine +horizontal filling equipment


printer letters.jpg


machine ready for shipping.jpg

wooden case packing for tubes filling sealing.jpg

After-sales service for ultrasonic tubes sealing machine horizontal filling 5-1000ml semi automatic model YX-UF100B

after sales service for filling sealing machine.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents,

misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician

 will go to your place to install and

test the machine and also training your worker to operating the machine

(The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country)

 should be on your account and you need paid

for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will

go to your place to fixed the machine

as soon as possible. The cost should be in your account.(as above).

ALL RIGHTS RESERVED by ®PENGLAI INDUSTRIAL CORPORATION
