USA MI customers bought cables cords labeling machine wire printing applicator equipment
Date:2023-03-23 11:00:45

Our customers from USA (North America) placed another order on One (1*) pcs of machine: model YX-WL50AA cables sticker labeling machine flag type labels applicator with printer.
For all the machines purchased it is clear to confirm all the information on the products so we often ask our customers to freight the samples to test and commission the machines in order that the machines and customer's products gains the best compatibility and adaptability.
After getting the confirmation &samples of the product in sizes and drawing for manufacturing the semi autoamtic sticker labeling machine for wire cables.
we spent only 7 working days finishing everything and made the machines ready after testing them in a satisfactory feedback.
Recently our customers sent us the positive commentar on the machines which keep running very well in their factory ever since the machines arrived their factory.
The machines was shipped via DHL courier to Rockford, MI  49341. The documentaries certificated with ISO&CO&CE together with other files necessory are sent via DHL to customer for assisting customers to clear the custom.

As below there listed the basic information on the successful transaction between PENGLAI and their American counterpart:

Purchased order issued &Key communiction points During Business Discussion:
PO via mail.jpg

PO via mail communication.png

email for purchasing cable labeler.jpg

PO for labeler.jpg

PO contract with USA china branch office.JPG

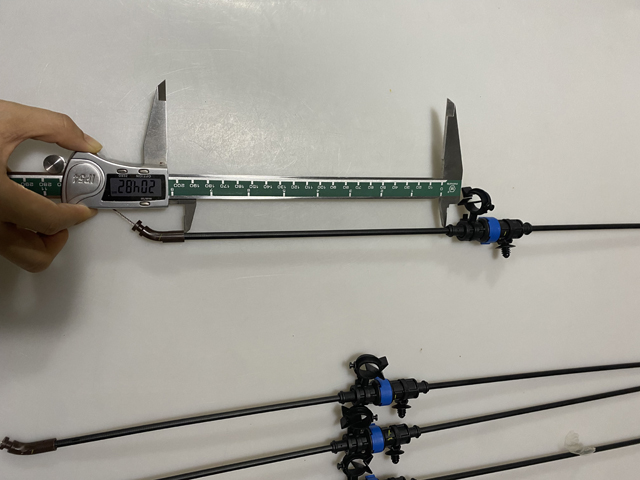

Samples sent from customers in Rockford, MI  49341 USA

labeling samples illustration.jpg
cables cord samples (3).jpg

cables cord samples (3).jpg

cables cord samples (5).jpg

cables cord samples (6).jpg
Bank copy of Down&balance payment for purchasing Brose Cable Flag Label printing applicator model YX-WL50AA
down payment for labeler (1).jpg

down payment for labeler (2).jpg

balance payment for labeler (1).jpg

balance payment for labeler (2).jpg
Testing videos on Model YX-WL50AA sticker labeling cables wire cordds machine with printing system

Wooden case packing of Brose Cable Flag Label printing applicator.

wooden case for labeling machine (6).jpg

wooden case for labeling machine (8).jpg

wooden case packing for shipping labeling machine.jpg

wooden case for labeling machine (5).jpg

wooden case for labeling machine (4).jpg
As follow there given the description on the machines purchased respectively

The machine is customized with customers' special requriements which are listed as below:

1. Label size 40*16mm
2. Wire diameter 4.02mm
3. Labeling position: 0.5mm from one end according to the drawing requirements
4. Printing content: the device should have the function of printing PDF417, QRCode, Hanxin code, GM code and CM code, which are commonly used two-dimensional codes, and the printed two-dimensional codes meet the corresponding national standards;
5. The two-dimensional code reader uses KEYENCE SR-2000W (KEYENCE SR-2000W). In addition to the routine debugging of the reader, Party B also needs to call the two functions of "matching level" and "marking verification". When the two-dimensional code information read by the reader does not meet the requirements, the alarm signal of the reader can lock the labeling machine and send out sound and light alarms;
6. If the positioning ruler needs to be installed on the machine, it can only be labeled in the designated place, and it cannot be labeled in other places
labels printer.jpg
Information to be provided
1 equipment schematic paper
2 electrical drawings
3 Equipment Manual
4 Operating Instructions
5 Maintenance Instructions
6 Equipment wearing parts list
7 List of Electrical Components
8 Instructions for electrical and mechanical standard parts and other materials

Applicable for folding labels on all kinds of wires and cables, such as power lines, computer peripheral cables, electronic sensor cables, headphone cables, power lines, fiber-optical lines, cable lines, piple cables, USB cables, cables of fax / printers, etc.
Applicable for wide range products size, easy to adjust and replace different products.

Operation process:
Core principle: the sensor detects the product passing by, return signal to the labeling control system, signal processed via PLC processing, delivering the label to the preset product position at appropriate time, when the product flows through the covering mechanism, labels will be covered solid , labeling action is completed.
Procedure: Put on product -> Product Detection (automatically) -> labeling (automatically) -> Covering (automatically) -> collect labeled product.

Features of model YX-WL50AA with printer QR coder:

apply labeller printer for Mexican customer (1).jpg

labels printing cables wire machine details (5).jpg

labels printing cables wire machine details (6).jpg

* Wide range of applications, suitable for different specification product;
* Convenient using, wide range adjustment, labeling on different specification products.
* High stability, advanced electronic control system consisting of Panasonic PLC + Germany label electric eye, support equipment 7 × 24-hour operation;

Range of application:
all kinds of samples wire cables.jpg

samples wire for labeling.jpg

label rolls for folding labeller with QR code labeller.jpg
Applicable Label: self-adhesive label/film, electronic monitoring code, barcode and so on.
Application: wire and cable, large width, multi- specifications, high precision folding label products.
Applicable Industry: Widely used in electronics, wire, cable and other industries.
Application: wires labeling, computer peripheral labeling, USB cable, etc.
Folding device can be adjusted, non-product range can be customized according to customer samples.

apply labeller printer (3) PENGLAI.jpg

labels printing cables wire machine details (3).jpg

labels printing cables wire machine details (1).jpg

Guide on how to operate the model YX-WL50AA labels apply printer:

Please confirm the power supply voltage (AC220V), air pressure 4-6kgf, and the external power supply must have reliable grounding before the 2.1 power supply.
2.2 do not block the cooling hole of the chassis.
2.3 non professional technicians strictly prohibit the opening of the chassis.
2.4 the operating range of body contact is strictly prohibited when the equipment is operated.
When the 2.5 equipment fails, the power switch should be closed first and the electrified maintenance is strictly prohibited.
2.6 the machine is used for the folding and labeling operation of the wire harness and the round rod.
2.7 applicable label parameters: the inside diameter 76mm of the label roll and the outer diameter Max240mm; (other specifications should be fixed).
Label material: PVC, PET, cloth, paper and so on;
Label specification: according to the specific machine
2.8 labeling accuracy: + = 0.2mm;
2.9 capacity: 1500 Pcs/H;
2.10 outer size: 630*740*1040 mm (L*W*H);
2.11 machine weight: about 86KG;
2.12 applicable wire harness: according to the specific machine

Operation description

3.1 installation:
3.1.1 moves the device to the required installation position.
3.1.2 trampled the universal wheel brake and fixed the universal wheel to make it smooth.
3.1.3 Label baffle plate: when installing, we must fix the "screw hole of the disk fixing block" to the "material shaft hole", and screw the M6 screw through the screw hole of the material fixing block and lock it into the axle hole of the material tray.
labeller wire.jpg
.3.2 equipment appearance, important parts and man-machine control interface.
3.2.1 important parts.

penglai LABELING wire with printer QR.jpg

illustration on model YX-WL50AA.jpg
3.2.2 main picture.
MAIN PARAMETES.jpg

A. output: capacity count, press "output zero" key to zero;
B. current position: the real-time position distance display of the sliding mode of the label transmission module, the unit mm;
The operation mode of C. is "automatic" and "foot tread" two kinds.
3.2.3 user parameters.
USER PARameter.jpg
A. standard board speed: the speed of the indicator board operation, adjusted according to 0-100%.
B. mark speed: refers to the speed of the label stripped from the stripper plate, adjusted by 0-100%.
C. bottom paper width: the width of the label paper, unit mm.
D. wire diameter: single wire diameter input, flat wire or multi wire input directly to fight double thickness, mm.
E. mark length: control the length of the label from the stripper plate, unit mm.
F. forward: press the "forward" key, the tag drive module will slide forward, this function can adjust the distance of the target position.
G. back: press the "back" key, the tag drive module will slide back to the rear, this function can be debugged the distance of the position of the labeling point.
H. fit: press the "fit" key, the straight air plate clamp cylinder and the wiring harness placing module will move the upper and lower moving cylinders. This function can debug the distance between the wiring harness and the vacuum plate clamping.
I. reset: turn the header back to zero after the reset button.
J. electricity: after the replacement of the different specifications of the label base paper, long press the electrical keys to allow the system to automatically learn labels and bottom paper penetration.

3.3 operation method:
3.3.1 tag is installed, and the label is installed as below to the stripper module.
labels winding illustration.jpg
3.3.2 boot
Turn the power switch clockwise and turn on the power. Press the stop key and rotate clockwise.
3.3.3_ switching and adjusting machine according to the diameter of the wire, the adjustment, the connection seat, the distance between the plates, such as the following figure
winding illustation.jpg input the width of the bottom paper in the width of the bottom paper of Figure
3, and the diameter of the wire is input to the diameter of the wire.
3.3.4 adhesive tape and openings
tapes opeaning.jpg
3.3.5 tag
In the process of production, if the label is not aligned before and after the label,
it can be adjusted directly in the "bottom paper width" column.

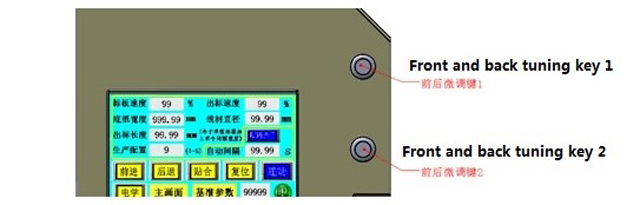

Can also move "front and back tone key 1" "front and rear micro tune key  2"
 adjustment, each move to change 0.1mm.
3.3.6 label left and right adjustment machine
If the labels are folded, if the left and right sides are not aligned, the four transmission components must be loosened loosely, then the left and right trimming nuts should be adjusted according to the deviation direction and the degree of the labels. Finally, the four transmission components must be locked.
                                                    Maintenance and maintenance
4.1 strictly prohibit pressure, please keep clean at any time.
4.2 in order to lubricate the machine on time.
The active position of the 4.2.1 standard plate is added once a month
If there is a lubricating oil 4.2.2 timing check separator cup, if not timely supplement.
4.2.3 three months to check the wear of the synchronous belt at the various parts of the machine
Random appendage list of 3.6 labeling machine
Number and number of names and specifications
1 inner six corner board 1.5mm 1
2 inner six corner board 2.0mm 1
3 inner six corner board 2.5mm 1
4 inner six corner board 3.0mm 1
5 inner six corner board 4.0mm 1
6 inner six corner board 5.0mm 1
7 inner six corner board 6.0mm 1
8 inner six corner board 8.0mm 1
9 power line 220V*2.5M 1
10 pedal switch / 1
11 trachea 8 per cent *3M 1

Finished label-printed samples and wooden case before shipping:

final labeling printer samples (1).jpg

final labeling printer samples (3).jpg

name plate.jpg

wooden case packing  (1).jpg

wooden case packing  (2).jpg
