Our Regular customers from IA State (U.S) placed another order on one(1*) pcs of machine: Coffee scrub tubes filling and sealing machine with heating and mixer Model YX-009.
For all the machines purchased it is clear to confirm all the information on the products so we often ask our customers to freight the samples to test and commission the machines in order that the machines and customer's products gains the best compatibility and adaptability.
After getting the confirmation &samples of the product in sizes and drawing for manufacturing the tubes filling and ultrasonic machine semi automatic.
we spent only 17 working days finishing everything and made the machines ready after testing them in a satisfactory feedback.
Recently our customers sent us the positive commentar on the machines which keep running very well in their factory ever since the machines arrived their factory.
The machines was shipped via Fedex courier to St NW Clarion, IA 50525. The documentaries certificated with ISO&CO&CE together with other files necessory are sent via DHL to customer for assisting customers to clear the custom.
As below there listed the basic information on the successful transaction between PENGLAI and their american counterpart:
Purchased order issued &Key communiction points During Business Discussion:
Samples sent from customers in IA state US

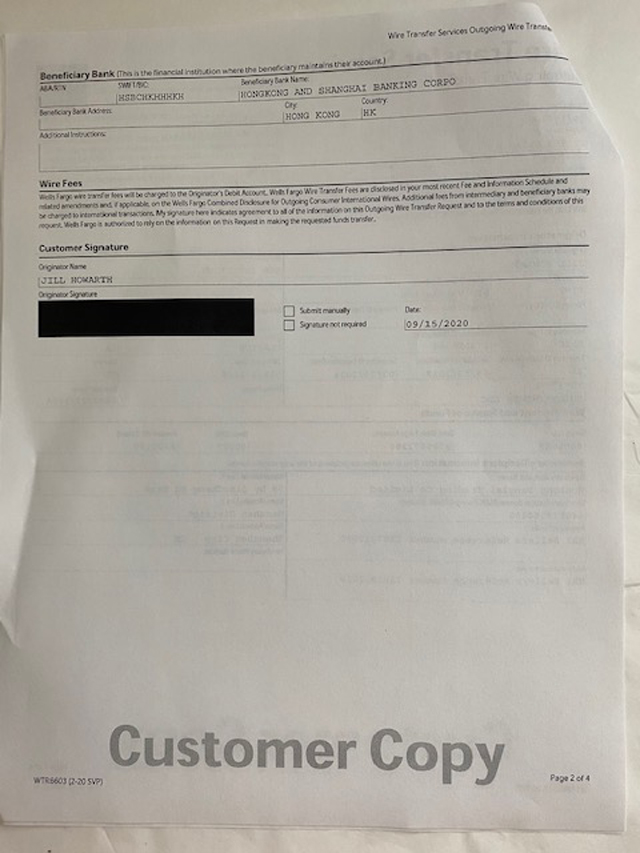

Bank copy of Down&balance payment for purchasing model YX-009 Semi automatic filling machine
Testing videos on model YX-009 semi automatic mixing heating filling machine
Wooden case packing of model YX-009 tube filling and sealing machine.
As follow there given the description on the machines purchased respectively:
Application of ultrasonic filling and sealing machine semi automatic:
Parameter of semi automatic ultrasonic sealer with filler:
Model YX-009 Semi Automatic Ultrasonic Tube Filler And Sealer Machine
Frequency 20KHZ
Power 2kW
Power Supply AC220V/110V 1PH 50/60HZ
Filling Range A: 6-60ml B: 10-120ml C:25-250ml D:50-500ml (could choose based on customer’s volume)
Filling Accuracy ±1%
Capacity 10-15pcs/min
Sealing Dia. 13-50mm
Tube Height 50-200mm
Air Pressure 0.5-0.6MPa
Dimension L860*W670*1570mm
Net Weight 180kgs
Configuration of filling sealing equipment model YX-009:
Ultrasonic system Automatic frequency tracing
Benchmarking electric eye Panasonic, Japan
PLC screen Coolmay, CN
electric relay Omron, Japan
Inductive switch SICK, Germany
Air cylinder AirTAC, China Taiwan
Solenoid valve AirTAC, China Taiwan
Stepper motor JMK motion, CN
Transducer CN
Air source processor AirTAC, China Taiwan
Foot switch DELIXI, CN
Features of semi automatic plastic tubes filler and sealer:
1. Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
2. Manually feed the tube, press start button, machine could automatically identify the registration mark, filling, sealing with coding, end trimming.
3. Independent R & D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
4. PLC with touch screen control system, providing friendly operation experience.
5. "Panasonic" high sensitive sensor with stepping motor, could track the registration mark precisely.
6. Equipped with filler for both liquid and cream, with filling tolerance within ±1%.
7. Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
Finished sealed tubes:
