Mexican customer bought semi automatic small bottles induct sealing machine tabletop type
Date:2023-07-26 18:04:39

Our New customers from Mexico (North America) placed the order on one(1*) pc of machines: Model YX-S1500A induct sealing machine semi automatic tabletop type sealer.
For all the machines purchased it is clear to confirm all the information on the products so we often ask our customers to freight the samples to test and commission the machines in order that the machines and customer's products gains the best compatibility and adaptability.
After getting the confirmation &samples of the product in sizes and drawing for manufacturing the bottle induct sealing machine
we spent only 7 working days finishing everything and made the machines ready after testing them in a satisfactory feedback.
Recently our customers sent us the positive commentar on the machines which keep running very well in their factory ever since the machines arrived their factory.
The machines was shipped via Fedex courier to Mz -96 Colonia. Rinconada San Marcos. Postal Code. 54954. The documentaries certificated with ISO&CO&CE together with other files necessory are sent via DHL to customer for assisting customers to clear the custom.

As below there listed the basic information on the successful transaction between PENGLAI and their Mexican counterpart:

Purchased order issued &Key communiction points During Business Discussion:
PO VIA mail.jpg

PO for INDUCT sealer.jpg

PO via WhatsApp.jpg
Samples sent from customers in North America
samples for  induction sealing.jpg

meter to the caps.jpg

caps sizes.jpg

jars sizes.jpg

meter to the caps.jpg

Bank copy of Down&balance payment for purchasing Model YX-S1500A induct sealing machine

payment bank slip.jpg

IHSBC RECEIPT Mexican Israel shipping cost.jpg

bank copy for shipping cost.jpg

payment for induct sealer.jpg
Testing videos on tabletop type induct sealing machine semi automatic sealer model YX-S1500A

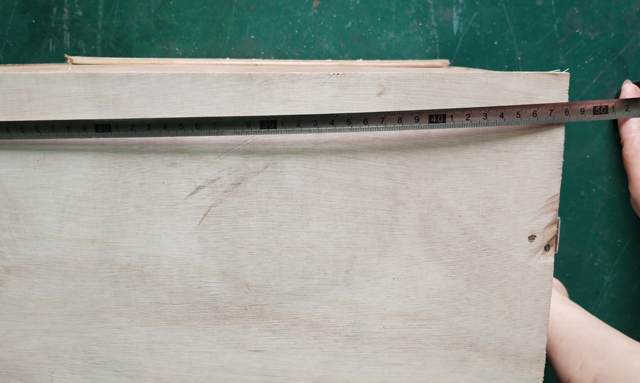

Wooden case packing of semi automatic induct sealing machine bottles sealer:

wooden case packing for the induct sealer (4).jpg

wooden case packing for the induct sealer (6).jpg

wooden case packing for the induct sealer (1).jpg

wooden case packing for the induct sealer (7).jpg

wooden case packing for the induct sealer (5).jpg

wooden case packing for the induct sealer (2).jpg
As follow there given the description on the machines purchased respectively

Tabletop induction sealing machine working principle

The machine conveys the Ultra high frequency to the induction box;The aluminum foil on bottles mouth under the induction box will produce the UHF vortex due to the electromagnetic induction,which results in the instaneous high temperature,thus the plastic part

in the bottle mouth and the aluminum foil will be welded together,finally the bottle mouth will be sealed tightly;

How to operate tabletop type induction sealing machine:

Before starting the machine,put the bottles under the induction box,rotate the wheels to adjust the distance between the induction box and the bottle caps; The optimized distance between both ranges from 1mm to 2mm;

Start the machine,the conveyor moving and put several bottles on the conveyor to check if the bottles can go throught the induction boxes; Adjust the lifting wheel to get the optimized distance for bottles;

2.Adjust the handle in the conveyor to get the ideal data to run the conveyor belt;

3.Adjust the guide bar on the conveyor belt on both sides to the proper position which can let the bottles be alighed with the center of induction head during sealing;

4.Before sealing the bottles choose the time suitable to get the best sealing effect according to the bottles diameter and the sealing effect targetted; Adjust the speed knob to adjust the time when the bottles pass through the induction boxes making the time same with the time to get the

best sealing effect; Adjust more bottles to try :If the bottles are sealed tightly but the bottle mouth and the foil wad get burnt or blistered due to the high temerate,it means the temperature to seal the bottle is too high,accelerate the delivering speed of conveyor belt; If the foil wad after being sealed is easy to fall

off from the bottles,it means the heating time is too short,then decelerate the delivering speed of conveyor belt;

5.After finishing the steps above-mentioned the sealing effect will be good so hat the tabletop induction sealing machine can be available for working;

Drawing of induction sealing machine model YX-S1500A

drawing of induction sealer.jpg

1.Lifting wheel: lifting the induction box and adjust the bottles height;

2.Induction box: heat the inducted aluminum foil under it;

3.Conveyor belt: Deliver the bottles that require to be heated;

4.Guide bar: Align the bottles with the center of induction box to get the optimzed position to seal the bottle;

5.Start/stop Button: Turn on/off the bottle;

6.Power: ON/OFF

7.Speed-adjusting know:adjust the speed of delivering belt

8.Power Button:Adjust the size of power in the machine

9.Adjust Screw: Adjust the tightness or looseness of conveyor belt or dislocation;

10.Ampermeter/Voltmeter:Give a sign of the voltate/amper value,moniter the working station of machine;

Back of machine: power socket for 220V/50HZ(it can be customized with the US power supply 110V/60HZ);

Fuse socket

Tabletop Aluminum Foil Induction Sealing Machine, Stainless steel induction sealer machine

This machine can not be used for metal cap,machine is made of Stainless Steel, in line with GMP requirement.
The Bottles materials can be PE, PP, PET, HDPE and glass etc. With high sealing efficiency, easy operation, and the sealing speed can be adjusted at will, with high accuracy.

sealing machine.jpg

sealing equipment semi automatic.jpg
This series of machine of transistor circuit control, the characteristics of low cost, simple operation, easy to use. Mainly used for bottle with threaded plastics, glass bottle of bottle etc. Nonmetal induction membrane sealing operation. Applicable to large and medium sealing job. Batch continuity, Not suitable for acid, alkalinity and high humidity and dust more harsh environments (such as pesticides. SAN, etc.) for a long time. These series machines are suitable for single homework, do not use in line connected.Suitable for various sealing of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades.
Technical parameters of induction heating sealing machine aluminum foil tabletop electric magnesis sealer Máquina de sellado Botellas:

induct sealer equipment model YX-S1500A.jpg

INDUCTion sealer.jpg
Model YX-S1500A transistor air-cooled desktop electromagnetic induction machine
Electrical source: AC220V±10% 50Hz
Reactive rate (W) : 1500
Current work more than eight :≤8(A)
Work: continuous conveying
Cooling way: forced cooling fan
Type: desktop
Materials: stainless steel chassis
Sealing diameter: φ 20 - φ 100(mm)
Apply high: 40 ~ 200(mm)
Sealing speed: 0 ~ 10m/min
Host: 115 x 48 ×40(cm)
Host: 38kg

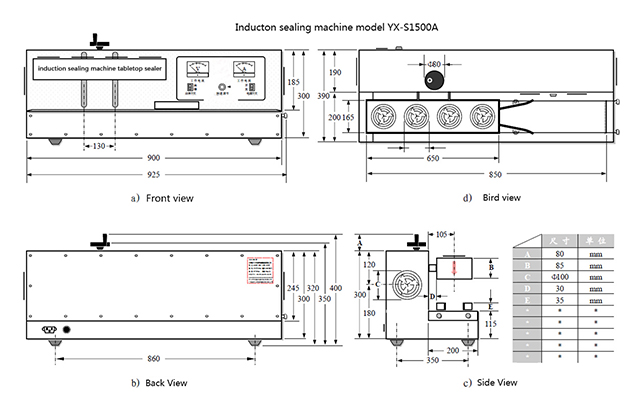

Illustration of model YX-S1500A induction sealing machine:

Dimension of induction sealing machine

dimension of tabletop sealing machine induction sealer.jpg

Working principle of sealing machine

working principle.jpg

Circuit diagram for induction sealing machine

induction sealing equipment semi automatic tabletop for PENG

Sealing samples for bottles in various sizes

induction sealer equipment tabletop.jpg

induction sealing samples.jpg

sealing samples from table top big plastic jar aluminum foil

Aluminum foils for sealing machine heating seal:

sealing machine induction.jpg

laminated foil.jpg

Wooden case packing for sealing machine tabletop induction sealer:

wooden case for induction sealing(6).jpg
