Plastic jar sealing machine oat paper cans roll film heat sealer equipment automatic double line 12 heads jar closing machinery
Plastic jar sealing machine oat paper cans roll film heat sealer equipment automatic double line 12 heads jar closing machinery
model YX-FS12
Jar size diamer range: 21mm-320mm
Height : 42mm-490mm
Air pressure: 0.6-0.8Mpa air consumption:0.15-0.2m2/min
12Jars output at one time
Materials of machine SS304
Power supply 480V/three phases/50-60hz(big converter needed for U.S power supply)
7.5KW power consumption
Machine size 5800*2000*1850mm
Temperature range: 0-300degreee
Speed 4000-5000jars per hour
Sealing diameter: 21mm-250mm
Packaging materials: PP PE PET PS OR Plastic laminated type cups and jars
Easy tear lip function added
Net weight 900kg
Description

The heating jars sealing machine is customized with the oat jars for our USA customer who requires the machine operation speed at least in 4000cups per minute. We tested them for several times and confirmed the stable speed at about 4400pph.
The key point to keep the machine running stable and fast is up to the way to fix it during the sealing because the paper cans are suscepticable to deform and bend when positioning
by the holders for sealing. We adopt the screw feeder to fix the lower part of the jars as well as the arc parts to hold the upper part of the paper cans during sealing,which ensure the sealing process is smooth and fast.

Click the numbers below-listed for easier navigation in this article:

1.►Paramaters of jars sealer

2.►Drawing of jars sealer capper line

3.►Features of sealing machine automatic jars sealer

4.►Details of jars sealing machine

5.►Sealing samples for jars cans containers

6.►Wooden case before shipping the sealer

7.►Maintenance on roll film heat sealer

8.►Manual instruction on how to operate sealer

9.►What is the jar sealer?



The basic parameters of heating jars sealing machine is given as below:

automatic jars sealing machine.jpg

jars sealing machine details (2).jpg

jars sealing machine details (3).jpg

model YX-FS12

Jar size diamer range: 21mm-320mm

Height : 42mm-490mm

Air pressure: 0.6-0.8Mpa air consumption:0.15-0.2m2/min

12Jars output at one time

Materials of machine SS304

Power supply 480V/three phases/50-60hz(big converter needed for U.S power supply)

7.5KW power consumption

Machine size 5800*2000*1850mm

Temperature range: 0-300degreee

Speed 4000-5000jars per hour

Sealing diameter: 21mm-250mm

Packaging materials: PP PE PET PS OR Plastic laminated type cups and jars

Easy tear lip function added

Net weight 900kg

Drawing of jars sealing outer caps press capping line:

Final drawing 12 heads filler + auto over lids capping.png



Features of automatic jar sealing machine:

1.The cutting system driven by the servo system instead of the pneumatic system;

2.Stainless steel 304 adopted to build the main body of the sealer;

3.Screw auger feeder and postioning system during the sealing for securing the paper cans jars;

4.No sealing without paper cans under the 12 sealing heads to protect the demage  of cutters;

5.VAF motor in the conveyor belt for stepless speed adjustment;

6.Sealing machine can be integrated with filler and capper to form a whole packaging line by conjunction with the prior and subsequent conveyor belt;

7.Machine comes as a whole set for the shipping then in customers' site no need a lot engergy for installation; Ready for use just plug the sealer for the operation.

More details for double lines 12 heads heating sealing machine model YX-F12

sensor for jars feeding .jpg

screw auger feeder and sealing head .jpg

touch screen and temp controller.jpg

jars sealing machine details (1).jpg

Bottles&containers samples applied for being sealing by model YX-FS40 linear sealing machinery:

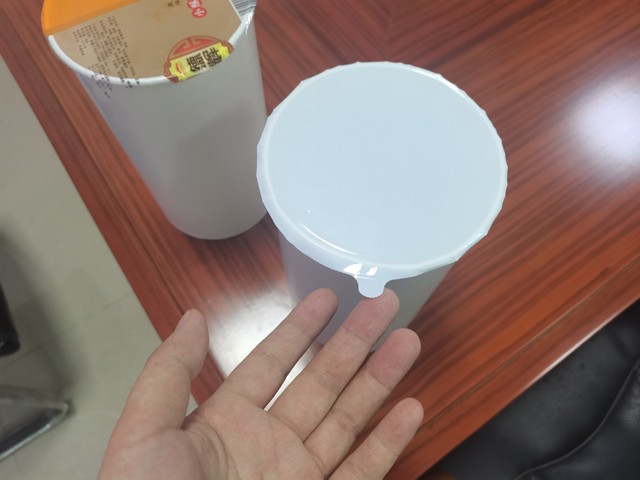

Easy tear Notch cutting for sealing film &jars

tear off cups.jpg

pull tab 1.jpg

jars&bottles for sealing machine

overall info..png

jars samples paper cans.jpg

30 pcs intotal.jpg

jars sealing samples.JPG

jars sealing equipment samples.jpg



Wooden case and shipping for automatic double line 12 heads jars sealer:

name plate for jars sealer.jpg

wooden case and shipping (4).jpg

wooden case and shipping (2).jpg

wooden case and shipping (3).jpg

wooden case and shipping (1).jpg



Maintenance on linear 12heads jars film sealing machinery

information in touch screen.jpg
1. Clean the heal sealing head regularly (must do this after power
supply have been cut off and recover to normal temperature)
2. Regularly lubricating the heat sealing head shaft and other parts .
3. If need to clean the cut knife, should cut off the power supply firstly
and recover to normal temperature.
4. Regularly clean the air filter
Product warranty
Thank you for the trust of our products, we will provide you after-sale
service seriously
Warranty terms:
1, this product from the date of delivery within 3years, such as manufacturing or materials due to the bad and malfunction, the
company is willing to make free repair and exchange new one for the damaged parts.
2, If any injury, death of the personnel and damage to the machine are caused by the action which does not follow this manual properly,
our company will not be in such responsibility, or other non quality
failure, do STH without authorization and machine are not belong to the warranty range.
3, the repair after the expiry of the maintenance, the company will charge reasonably for repairs and components.
Machine name: Automatic 4 head jars sealing machine
Machine Numbers:model YX-FS40
Release date:XXX

Manual instruction for the automatic plastic jars sealing machine:

1. How to start the machine
First connect the machine to the transformer and have it connected to both the power and the air.
Switch on the power, tap on the “Heating Start” till all sealing heads are heated to the setting temperature.
Then press “Auto Start” for one second.
double lines oat jars sealing machine 12 heads heating seale
2. How to adjust the speed?
Generally speaking, there is no need to adjust the speed as it’s it’s already set up to over 4000
PCS per hour. If it’s necessary, then please try to adjust the three settings circled below.
touch screen.jpg

touch screen chinese.jpg
3. Common issues which might occur during production

- Waste film breaking (there will be alarm reminders)
film connection.jpg
Get the breaking piece winded well on the waste reel, then power on the machine, and tap on
tap on the “Heating Start” till all sealing heads are heated to the setting temperature.

4. Here is where you can set the film length between 6 seals.
film connection.jpg

film length setting.jpg

What is the Jars heat sealing machine?

Food thermosealing is the process by which products are packaged with the help of a thermosealing machine, after applying heat and pressure to a plastic film.

Heat sealing is used to isolate packaged products from harmful agents such as mould or bacteria.

Automatic heat sealing is used to cover large scale productions, offering in three simple steps the sealing and automatic output of the package with the food.

The employee introduces the tray with the food in the thermosealing machine. The thermosealing machine wraps the food tray with the plastic film, sealing and cutting the film.

After this process, the machine ejects the thermosealed container.

The thermosealing technique with gas injection is an option used for vacuum packaging preserving the characteristics of the food.

This conservation process is carried out by injecting the amount of inert gas into the interior of the tray, sealing the upper layer of the plastic film that will maintain the attractive appearance of the packaged food.
There are many advantages to using heat sealing for food preservation, among them we have

It offers a more attractive and hygienic presentation of the food for the consumer.
The heat-sealing allows the food to be kept in excellent condition, preventing the food from being crushed.
The use of heat-sealing facilitates the storage of food in suitable plastic containers or heat-sealable trays.
It allows for the packaging of large quantities of food in short periods of time.
It can be used in any type of business such as butchers, fishmongers, delicatessens, fruit shops, supermarkets, catering companies, take away and restaurants.
