Labeling accuracy ±0.2mm
Labeling speed 10～25Pieces / min
Applicable Dimensions (Length) 20mm～250mm
Applicable Product Size (width) 20mm～150mm
Applicable Dimensions (height) 0.2mm～120mm
Applicable Label Size Length：15mm～250mm Width：15mm～150mm
Inner diameter of label roll Φ76 mm Label largest diameter Φ280mm
Dimensions (L × W × H) 850mm×410mm×720mm
Power supply 220V 50HZ Total Power 145W
Pressure (Mpa) 0.4～0.6Mpa

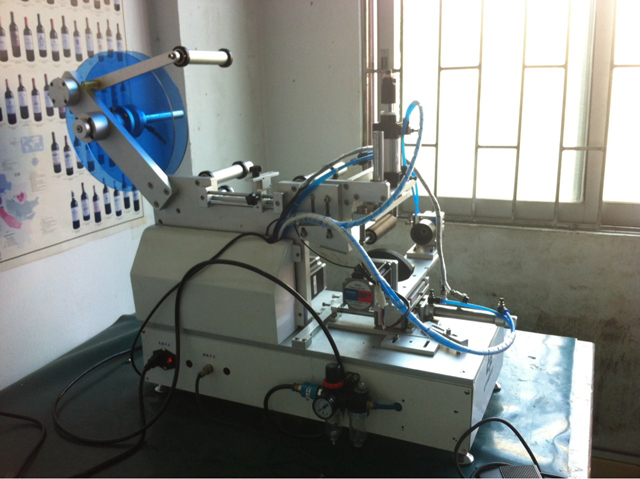

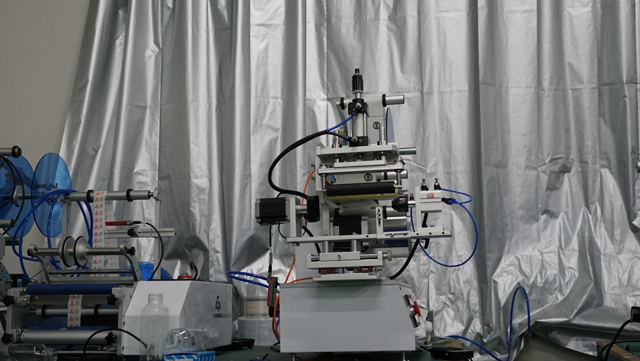

The model YX-LM520A rolling labeling machine semi automatic customized oval flat plastic bottles is the updated version based on model YX-LM520 by replacing the pneumatic driving part with the stepping motor .With stepping motor the model YX-LM520A labeling machines work in a more stable way . The highly-performance machines labeling is specially designed for oval soft plastic bottles in order to avoid the insufficient labels in edge or lower accuracy labeling for irregular bottles .
Labeling is one of the most critical components in a bottling line. A customer’s perception of the quality of a product is directly related to the quality of the label on that product.
Labelers must therefore be precise to show quality and also flexible to meet changing regulatory demands. Inline Filling Systems offers a host of labeling machines for the most simple, low cost, semi manual applications to the most demanding high speed, state-of-the-art applications.
Below is the Drawing for rolling labeling machine model YX-LM520/A series
The basic purpose on semi automatic plane surface labeling machine semi automatic model YX-LM520A
◆ applies to products on flat or curved, concave labeling, labeling accuracy up to ± 0.2mm, mainly used in electronic components, precision labeling of digital products, such as SD cards, cell phone batteries, FPC, mobile phone charger labeling and so on. Precision labeling, highlighting the excellent quality of products, improve competitiveness.
Optional features for labeling machine custom rolling labeler equipment semi automatic for plane&oblong bottles objects:
Coder: thermal coder word tablets print production date, expiration date, batch number and other information.
Scope of customized labeling machine rolling labeler equipment model YX-LM520A
◆ Applicable Label: Label, electronic monitoring code, bar code, etc.
◆ Application: require flat or curved, circular surface, concave, convex, or other surface attached label.
◆ Industry: Widely used in food, toys, cosmetics, electronics, pharmaceutical, metal, plastic, printing and other industries.
◆ Applications: SD card labeling, labeling and other batteries. (Canon Charger: no bubbles)
Working Process
◆ core principle: This principle is part of our R & D alone, if interested, please inquire.
◆ Procedure: put the product -> Labeling and covered standard (device automatically) -> Remove any labeling products.
Technical Parameters of MODEL YX-LM520 high precision rolling custom labeling machines semi automatic for cambered surface oblong plane subjects bottles containers rotary labeler equipment
Model YX-520A
Labeling accuracy ±0.2mm
Labeling speed 10～25Pieces / min
Applicable Dimensions (Length) 20mm～250mm
Applicable Product Size (width) 20mm～150mm
Applicable Dimensions (height) 0.2mm～120mm
Applicable Label Size Length：15mm～250mm Width：15mm～150mm

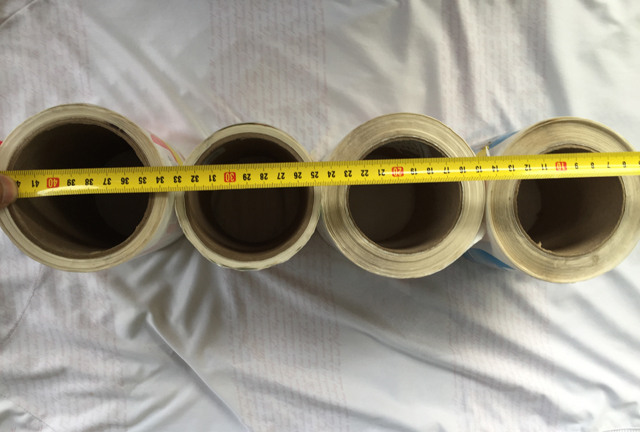

Inner diameter of label roll Φ76 mm Label largest diameter Φ280mm
Dimensions (L × W × H) 850mm×410mm×720mm
Power supply 220V 50HZ Total Power 145W
Pressure (Mpa) 0.4～0.6Mpa
Features on semi automatic bottles labeling machine model YX-LM520A
◆ precision, domestic original labeling technology, labeling accuracy of ± 0.2mm, meet the needs of high-precision labeling;
◆ Easy to operate, stripping standard, standard delivery, suction mark, labeling and other actions automatically cover standard, manual loading to complete the labeling process;
◆ safety, transmission components wrapped with pneumatic circuit arranged separately, to avoid an exception occurs, the use of safer;

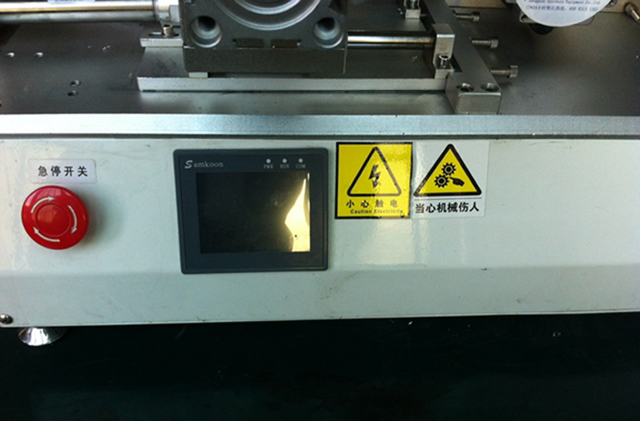

◆ high stability, using stepper motors + PLC + electronic control system consisting of fiber optic sensors, equipment stability, long time working;
◆ Optional automatic scale turntable device, can significantly improve the efficiency of loading and unloading, improve labeling efficiency;
◆ Optional features and components: ① automatic feeding function; ② automatic rewinding function (combination of product considered); ③ other features (according to customer requirements).
Final labeling product from YX-LM520A square bottles labeling machine semi automatic:
Wooden case packing of rolling labelling machine.
After-sales service for labeling machines PENGLAI YX series
Guarantee: for all the machine, it claims three years for guarantee.
(Excluded from the warranty are problems due to accidents, misuse ,
misapplication, storage damage, negligence,
or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,
if you need,our technician will go to your place to install and
test the machine and also training your worker to operating the machine
(The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country)
should be on your account and you need
paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,
our technician will go to your place to fixed the machine
as soon as possible. The cost should be in your account.(as above).
