Fully automatic spout bags stand up doypack soybean milk filling capping machine water juice filler capper equipment
Fully automatic spout bags stand up doypack soybean milk filling capping machine water juice filler capper equipment
Model:YX-50F-04
Description: full auto jelly stand up pouch filling machines
Packaging speed: 3800-4300 pcs/hour
Filling content: 100-1000ML(adjustable)
Power: 3-phase 4-line socket(380V 50HZ)
Electric Machinery Power: 1.5KW
Heating up power: 2KW(Optional)
Air pressure: 0.5Mpa-0.7Mpa
Max air consumption: 0.8m3/min
Timing mode: Frequency inverter
Machine dimension(L*W*H): 2600x1700x2250mm
12) G.W.: 2200KG
Description

The machine is used to fill and cap stand-up pouches with jelly juice, soy milk, pure water, ice water, juice, yoghurt, milk, edible oil, seasoning, and detergent, etc. prodcuts. The machine is controlled by PLC touch screen. It is new food packaging equipment of reasonable structure, advanced performance, high automation and high speed.

Note:

1. According to the customer request, provides the special design.

2. The machine disposition may make the choice.

Machines vary with the controlling system and different optional function :

►Model YX-50F series automatic spout stand up bags filling capping machine for juice liquid jelly milk production with

button controlling system

button controlling system for spout bags filling.jpg

►machines with touch screen controlling system&automatic bags loading system for filling capping process

filling capping spout bags.jpg

►The spout bags filling capping machine automatic model YX-50F series with CIP cleaning system

CIP cleaning system.jpg

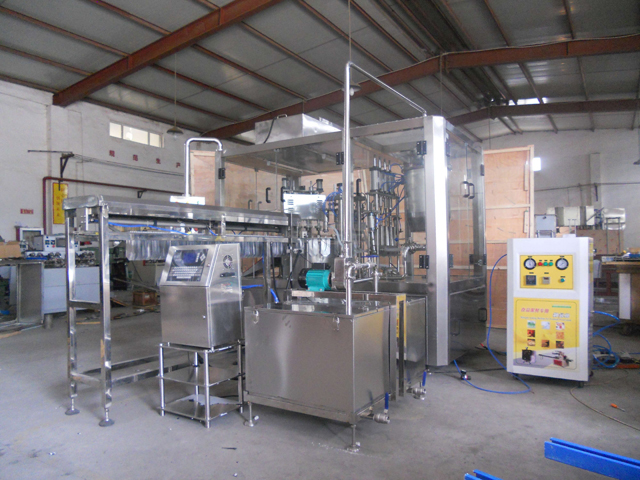

►Model YX-50F series automated spout bags caps filling sealing machine with CIP system&ink printer function:

CIP cleaning system date coding.jpg

Technical parameters of spout bags filling sealing machine automatic model YX-50F-04

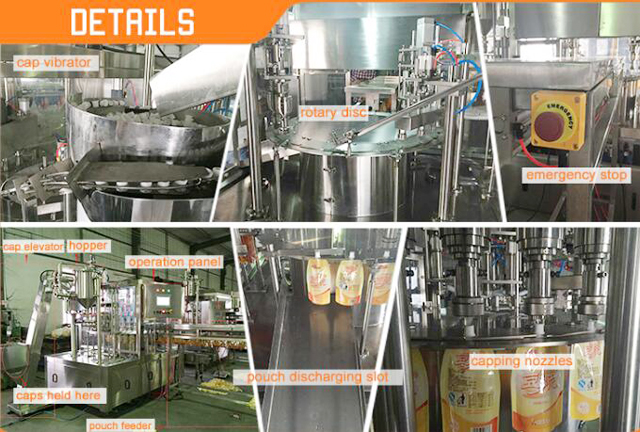

details for spout bags filler capper.jpg

Parameters

Contents

Nozzles Injector

4

Packing Speed

3800-4300 bags/Hour

Volume

100-1000ml

Powder

1.5 kw

Voltage

380V/50HZ (three phase)

Air Pressure

0.5-0.7Mpa

Air consumption

0.5 83/min

Out dimension

Main Machine: 2600*1730 * 2250mm

Send bag holder: 2200*500*1500mm

Weight

2200kg

The parameter above is only for reference, please make the object as the standard.

Basic Work flow:

drawing of filling capper.jpg

Structure of spout bags filling capping machine automatic model YX-50F series

drawing of filling capper.jpg

1

electrical appliance case

7

photoelectric checking device

2

pouch carrier

8

cap-screwing device

3

filling device

9

finished product exit

4

charging basket

10

turntable

5

cleaning device

11

structure

6

cap sorter device






machines in drawing.jpg

1

pouch carrier

6

cap-screwing device

2

filling device

7

turntable

3

plunger case

8

finished product exit

4

cleaning device

9

structure

5

charging basket





Final product for spout bags from filling sealing machine automatic filler capper for juice liquid production

sensational tasting all natural probiotic strawberry yogurt

spout bags.jpg

Packing List together with the machines

Name

Model

quantity

Filling Sealing Machine

YX-50F

1

Operation Instruction



1

Manufacturer Certificate



1

Hexagon ring spanner

M4

1

Hexagon ring spanner

M5

1

Hexagon ring spanner

M6

1

Hexagon ring spanner

M8

1

Hexagon ring spanner

M10

1

The six angle wrench

14—17mm

1

The six angle wrench

19—22mm

1

The six angle wrench

24—30mm

1

Cross Screwdriver

6 inches

1

Straight Screwdriver

6 inches

1

 Thermocouple

K type 1.0m

1

Electrical Heated Tube

Ф12x70 220V 180W

2

Wooden case packaging before ocean shipping for automatic stand up spout bags filling capping machine

bags filling capping.jpg

Quality Assurance:

1. Each machine is manufactured by our professional workers.

2. Each machine with a strict inspection before out of storage.

3. Each machine use a large number of 304 stainless steel.

4. Each machine use good quality electric elements.

5. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.

6. The warranty time is one year.

7. Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients pay for the freight of round-trip.

8. Beside the warranty days, we continue to provide life-long maintenance services.
