automatic overwrapping machine secondary packaging system boxes small cartons perfume packs overwrapper shrink wrapping line
automatic overwrapping machine secondary packaging system boxes small cartons perfume packs overwrapper shrink wrapping line
Model YX-99
Packing Material BOPP film and gold tear tape
Packing Speed 40~80 packs/min
Packing Size (L)240×(W)120×(H)60mm
Electric Supply & Power 220V 50Hz 5kw
Weight 500kg
Overall Dimensions (L)2000×(W)700×(H)1400mm
Description

Manufacturer YX-99 cellophane box overwrapping machine for playing cards&Perfume Cigar boxes



1.3D boxes overwrapping Machine

Automatic-Cellophane-Over-Wrapping-Machine-TOCOW-300A (1).jp



Performance Characteristics:

1.No need to regulate the height of two work tops of the machine when the mould is replaced, no need to assemble or dismantle the material discharge chains and discharge hopper. Reduce the replacement time of the mould four hours to the present 30 minutes.

2.New-type double safeguard mechanisms are used, hence other spare parts will not be damaged when the machine runs out of step without the stop of the machine.

3.Original unilateral hand swing device to prevent from shaking the machine adversely, and the non-rotation of the handwheel during the running of the machine can secure the security of the operator.

4.New-type double-rotary film cutting cutter can ensure no need to mill the blade during many-year use of the machine, which overcomes the defect that the traditional stationary single-rotary film cutting cutter was easily worn.



2.Sample

Manufacturer BTB-300A CE cellophane box overwrapping machine for playing cards

  cellophane box overwrapping machine

3.Uses

Automatic-Cellophane-Over-Wrapping-Machine-TOCOW-300A (1).jp

This overwrapping packaging machine is widely applicable to the automatic film packaging (with gold tear tape) of various single boxed articles, such as the medicine, health products, foodstuff, daily cosmetics, stationery articles, and audiovisual products.



4.Details

Manufacturer BTB-300A CE cellophane box overwrapping machine for playing cards

  cellophane box overwrapping machine

5. Main Technical Parameters of 3D overwrapping equipment fully automatic

Packing Material

BOPP film and gold tear tape

Packing Speed

40~80 packs/min

Packing Size

(L)240×(W)120×(H)60mm

Electric Supply & Power

220V 50Hz  5kw

Weight

500kg

Overall Dimensions

(L)2000×(W)700×(H)1400mm



6.Stock

Manufacturer BTB-300A CE cellophane box overwrapping machine for playing cards

   cellophane box overwrapping machine

7.Spare parts

Manufacturer BTB-300A CE cellophane box overwrapping machine for playing cards

 cellophane box overwrapping machine

8.Technical comparison List for overwrapping machines boxes:



Item

Another manufacturer

Our machine

 mould changeover time

Near one day time

30-60 minutes

film cutting knife

need reshape only 1-2 months

 needless reshape more than 2 years

 knife

single cutting knife

double rotary knife

 knife rack

single bar support

 double bar support and could easy adjust by hand

Film feeding

 dual air blowing

 four air blowing

working platform

 single column

Four column

Discharged chain

Fixed

Rotary so easy dismantle

Back support board

Fixed

adjustable with scale

Wheel

Fixed

Safe wheel and one way rotary

Rotary mould

Fixed and can not adjustable

Separate and easy adjusable

Mould box

Can not adjustable

Adjustable

Tearing notch knife

Fixed

adjustable

Packing sizes

130×80×40

240×120×60mm

Speed

40packs/min

70packs/min



9.Components electronics

Manufacturer BTB-300A CE cellophane box overwrapping machine for playing cards



Manufacturer BTB-300A CE cellophane box overwrapping machine for playing cards

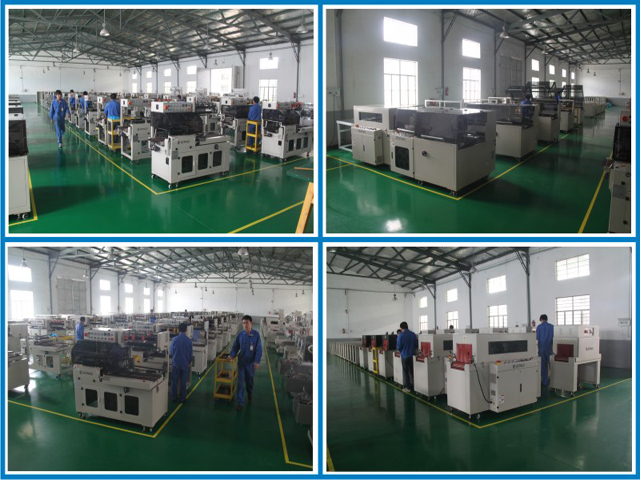

10.Workshop

Manufacturer BTB-300A CE cellophane box overwrapping machine for playing cards



11.Equipment of overwrapping machine  fully automatic 3D wrapper boxes model YX-99

Manufacturer BTB-300A CE cellophane box overwrapping machine for playing cards

12.Shipping

Manufacturer BTB-300A CE cellophane box overwrapping machine for playing cards

After sales service for overwrapping machines

contract business spirit from PENGLAI.jpg

Attention:

1)    Before using the machine, you should read the instruction book to avoid damaging machine for misplay.

2) It should arrange the special people to operate and maintenance.

3) Before start the machine, inject 2 litre HJ-20 type machinery oil into rocker concave wheel oil box one time.

4) For producing safely, connect ground cable according to tablet assigned position.

5) The machine should keep clean and beautify. Use mull touches cleanser essence at times, to clean the surface and outer cover.

6) When you do not use machine for long time, should clean the knife of cut part (use xylene or butanol )

7) When find the machine is not synchronous, you should stop machine and check it, to avoid damage other parts.

FOR EXPORTING overwrapping machine plywooden case.jpg



Guarantee: for all the machine, it claims one year for guarantee.



(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
