Mineral water rinsing filling capping line rotary small bottles rinser filler capper machinery 12-12-5 monoblock
Mineral water rinsing filling capping line rotary small bottles rinser filler capper machinery 12-12-5 monoblock
Small mineral water rinsing-filling-capping monoblock rotary filler equipment
Model YX- 12-12-5
Capacity (500ml)(b/h) 6000
Filling precision <±5MM
The size of bottle(mm)Diameter ofφ50-φ100;height:150-320
Suitable cap shape Plastic screw cap
Water pressure of washing bottle (Mpa) 0.18
Water of washing bottle(Kg/h) 2500
Gas Source pressure (Mpa) 0.4
Gas Consumption(m3/min)0.4
Total power(KW)6.57
Total weight (Kg)550
Dimension (mm) 3200×2100×2250
Description

Rotary water filling machine three in one (Rinsing filling capping)

(According to all your requirements , we offer you the specifications as follows for your reference)

This series equipment is used in the production of non-carbonated drink, such as mineral water and purified water, etc. Washing, filling and capping are integrated into one machine.

water filler line.jpg
3 in one filler water mineral water.jpg
Feature of bottles filling line


(1) The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
(2) The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle"s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

(3) The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.

(4) Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.

(5) Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.

(6) All parts that have direct contact with the water are made of high quality stainless steel. The critical electrical components are from famous international companies, such as Mitsubishi, Omron to name a few.

Working principle:

drawing of filling rinsing capping.jpg

transfer system for bottles.jpg

transmission mode for filling line.jpg

When bottles are sent to the machine by conveyor continuously, they firstly are delivered to the receiving wheel by air-slide conveyor and then to washing part. The bottle clamps hold the bottles and turn over 180°to wash, then return back to their original position after enough washing and drying. Then, the bottles are sent to the middle thumb wheel 1 and to the filling part to be filled, then moved by  middle thumb wheel 2 and reach to capping part to be capped, at the same time, cap trimmer sends caps to the top of the bottles and capper screws caps. At last, bottles are sent to the conveyor chain by the out stirring wheel to next working position.

Specification of rotary filling machine three-in-one

bottle water filling capping machine with weigher system.jpg

water filling line details.jpg

filling process.jpg

Model





YX- 12-12-5





Capacity 500ml)(b/h





6000





Filling precision

±5MM

The size of bottlemm

Diameter ofφ50-φ100height150-320

Suitable cap shape

Plastic screw cap

Water pressure of washing bottle Mpa

0.18

Water of washing bottleKg/h





2500





Gas Source pressure Mpa

0.4

Gas Consumptionm3/min





0.4





Total powerKW





6.57





Total weight Kg





550





Dimension mm





3200×2100×2250









Water filling line illustration

water filling line illustration  pic.jpg

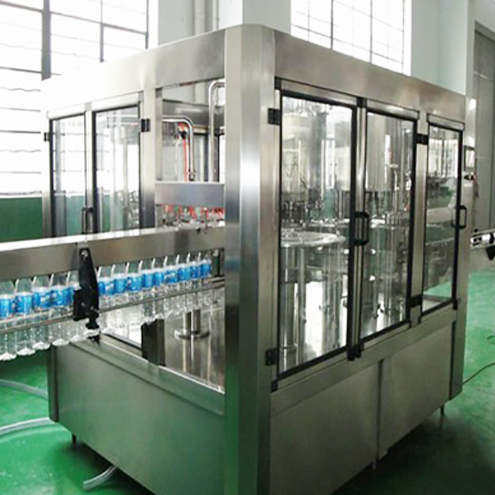

Machine three in one monoblock in customer's factory:

machine ready in factory.JPG

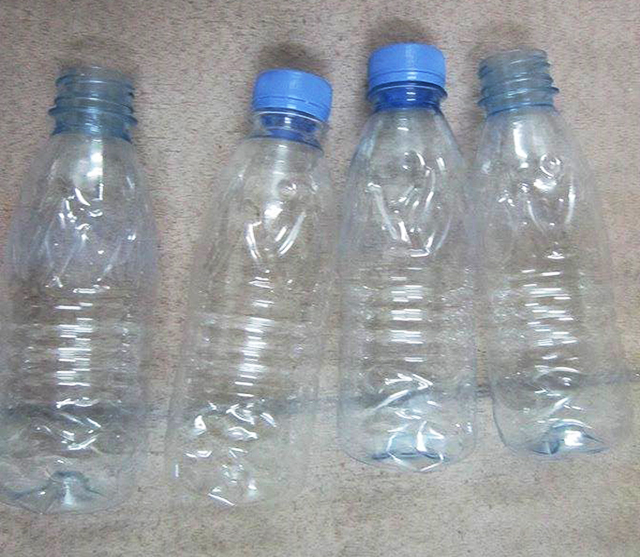

Customer’s bottles samples

330ml bottles.jpg

Bottles filling capping labeling samples

filling line for bottles samples.jpg

Wooden case packing for three in one filling line small mineral water

wooden case packing.jpg

After sales service

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
