red wine filling line fully automatic glass bottles linear filler plugging screw caps capping shrink capsulating labeling date printing line
red wine filling line fully automatic glass bottles linear filler plugging screw caps capping shrink capsulating labeling date printing line
the Grape wine production line the whole set consists of the machine in four parts :
first one :Automatic red wine filling machine linear model
Second one : Red wine bottles checking&plugging machine
Third: ROPP screw caps capping machine automatic
Forth one: Red wine PVC caps heat shrink capsulating equipment
Fifth: Red wine labeling machine
Sixth date coding ink jet with printer
Description

the Grape wine production line the whole set consists of the machine in four parts :
first one :Automatic red wine filling machine linear model
Second one : Red wine bottles checking&plugging machine
Third: ROPP screw caps capping machine automatic
Forth one: Red wine PVC caps heat shrink capsulating equipment
Fifth: Red wine labeling machine
Sixth date coding ink jet with printer

Videos of wine bottles filling line in details

As below there is the specified parameter for each machine one by one:

►YX-5030 Automatic inline olive filling machine with six heads

LINEAR FILLING MACHINE.jpg


The 6heads red wine filling machine,controlled by the microcomputer,combines the photoelectricity with pneumatic operation,thus widely is applied for the liquid filling of  the agriculture chemical、solution、liquid detergent、cosmetic as well as olive.The filling volume is precise,foamless and stable.The machine can fill the liquid with the range from 25-1000ml,meanwhile there is no special requirement on the shapes of bottles.That is to say,it can fill the liquid for the normal bottles as well as the irrugular-shaped bottles.
Model    YX-5030
Filling range     50゛3000ml
 Filling speed      30-45b/mfor 500-1000ml liquid
 Accuracy ±1%
Power/suppy power  1.2kw、220v/Single phase/50-60hz
Working pressure   5゛6kg/cm3
Air consumption      0.5-0.7mpa
N.W     500kg
Outer dimention     2300×200×1950mm
Mark:The filling nozzels can be designed and manufactured according to requirements  from customers on the filling range and filling speed

►Red wine bottles checking&plugging machine

automatic plugging machinery.jpg

Main characteristics:
   ♦ fashionable structure, few failures, long working life and reliable operation.
   ♦ motor stepless frequency control for a wide range of bottle height.
   ♦ the overload protection device in the process of bottle entering and corking to ensure the safety of man and machine.
   ♦ the mechanical linkage device ensures no bottle no corking.

Basic parameter of model YX-AC30 wine cork plugging machine

protection chamber plugging machinery.jpg

type

YX-AC30

Plug head

1

capacity(bph)

2500(adjustable)

Suitable bottle

a:bottle diameter:φ60~φ90mm(need to change some parts)

b:bottle height:250~370mm(adjustable)

overall size (mm)

1270×1060×2450

Cork length (mm)

35~44

Cork diameter (mm)

φ20.5~φ24

Weight (kg)

About 800

working voltage (V)

220/380

Machine power (KW)

0.75

Cap size (mm)

15-70

Bottle diameter(mm)

Φ35-Φ130

Bottle height(mm)

150-370

































YX-AC40 Automatic ROPP capping machine for olive bottle with metal caps

A screw cap is a metal cap that screws onto threads on the neck of a bottle, generally with a metal skirt down the neck to resemble the traditional wine capsule ("foil"). A layer of plastic (often PVDC), cork, rubber, or other soft material is used as wad to make a seal with the mouth of the bottle. Its use as an alternative wine closure is gaining increasing support as an alternative to cork for sealing wine bottles. In markets such as Australia and New Zealand screw caps on bottles have overtaken cork to become the most common means of sealing bottles, right across the wine industry

The capping machine is a suitable equipment for roll-press-sealing the Aluminum caps for the plastic bottle、pet bottle、as well as glass bottle.It precesses the screw-press capping for the bottle under the rolling press from hobs,automatically feeding bottle、caps,removing the reverse caps .The capped bottle favors the characteristics like the stable capping effect,convenient uncapping,so that it function as conterfeit and anti-theft

capping machine for bottles.jpg

Model YX-AC40

Supply powder (V/Hz)     AC 220/50  380/60

Capacity (m/min)  R40B/M

Cap size (mm) 250-1000

Application       Alum-caps

Air exhaust from Vacuum pum (m3/h)   5KG

Outer dimensionL×W×H(mm)        2000×1000×2300

N.G (kg) 520

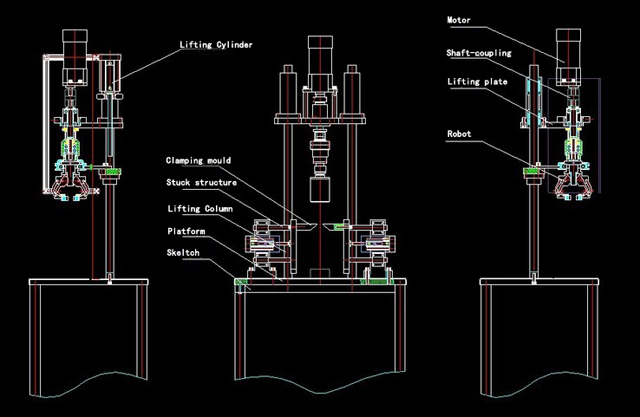

Drawing of ROPP capping working process

drawing of capping machinery.jpg

How to operate model YX-AC40 Single head ROPP capping machine

The feed container moving on conveyor belt are feed into an in feed star wheel through In-feed worm, star wheel bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of threading & sealing.

Salient Features :
The unit is made compact & versatile.
S.S. Slat conveyor
S.S. Elegantly Matt Finished Body
Built in front control panel
Vibratory Bowl
With A/c Frequency Drive

Forth one: Red wine PVC caps heat shrink capsulating equipment

Automatic red wine foil cap shrinking machine screw caps PVC capsulating equipment for glass bottles

Specifications of model YX-RC370A Automatic Grape Wine Cap Shrinking Machine red wine screw caps capsulating machinery

automatic for drinking industry

heat shrink machine for red wine bottles.jpg

red wine foil cap shrinking machine:
1, red wine glass bottle foil cap shrinking machine
2,Capacity: 1000-3000B/H
3, SUS 304

Red Wine Foil Cap Shrinking Machine

The machine is used to shrink aluminium cap for cork on glass bottles, it can be connected in line for automatic operation;
1, The cap will be shrinked averagely, the bottom will be even and without wrinkles;
2, The whole machine is without automatic bottle in and out system, the shrink device is working automatcially also;
3, There is protection device set at bottle turn plate, machine will be stoped automatically if bottle jam happen;

Parametres of caps shrinking capsulating equipment automatic:

capping Head for red wine.jpg
1, Bottle height: 200-370mm
2, Bottle diametre:70-100mm(bottle turn table need)
3, Max capacity:2000BPH(frequency control)
4, Shrink process:105
5, Compressor air source:0.1MPA
6, whole power:380V 1.5KW
Red wine labeling machine model YX-630AA

basic use of model YX-630AA labeling machine automatic vertical labeller machinery with bottles feeding table

The whole weekses that can used for various cylinder form product|half week, just the back double mark sticks a mark, such as sticking of food can, cosmetics circle bottle, and medicine bottle...etc. mark;Take a dozen of code machines such as the another nuance, can carry out to stick a mark to print to produce informations like batch number,etc at the same time.

►applicable scope:

*Apply label:The not dry gum label doesn't do a gum film, the electronics takes charge of code, the form code wait;

*Apply a product:The product that requests to stick to attach label or film on the circumference noodles, conic surface;

*Applied profession:Extensively Be applied to a food, medicine, cosmetics and day to turn, electronics, hardware, plastics etc. profession;

*Is applied solid example:The PET circle bottle sticks a mark, the plastics bottle sticks a mark, food can etc..

►Basic parameter of model YX-630AA labeling machinery automatic with bottles feeding system

drawing for machines.jpg

red wine labeling automatic.jpg

*model YX-630AA

*Stick to mark accuracy:±1 mm;(do not contain a product, label error margin)

*Stick to mark speed:Is 20~60|minute;(have relation with product label size)

*Apply product size:♂ 30 the ≤ product diameter ≤♂ 100 mms;

*Apply label size:15 ≤ width ≤ 110 mmses, length ≥ 20 mms;

*The whole machine size:1800 ×s 900 ×s 1300 mmses;(long × breadth × Height)

*Apply the power:220 Vs 50|60 Hzs;

*Air pressure:0.2~0.5 Mpas;

*The whole machine weight:2950 kgs.

red wine bottles labeling machinery.jpg

Applicable specifications: 20-1000 ml

bottle diameter: φ 10-phi 80 mm

the bottle height: 85-300 mm

production capacity: 0-100 BPM (speed adjustable)

voltage: 220 v50hz

power: 0.5 kw

weight: 70 KG

shape size: 1100 * 1000 * 1300 mm


Sixth date coding ink jet with printer

Date printer with touch screen  YX-E80 Inkjet-Drucker Maschine Introduction of date printer:

1.Full colour touch screen provided by Hitachi

2.Electronic components purchasing the latest AMR world's most advanced chips.

3.Power offered by the Aerospace Industry

4.Content can be modified during printing without stopping the production line

5.All stainless steel chassis parts, meet IP55 standard of protection.

►Printing parameter of date printer machine:


1.With photocell, a sensitive function of n-jet printing

2.Printing lines:1-4lines

3.Counter meter: Can be printing at any units of meters

4.Printing speed:2m/s(5*7)

5.Dot matrix printing

6.Character:8*8 can be combination in any form.

7.Editing Function: interplay

hybrid, rotate, combination,variety of different fonts,space or bold etc in 36 spot lattices.

8.Power requirement:  AC220V 50HZ 75VA

9.Nozzle pipe:2.0m(It can be made according special specification

Samples from the red wine filling-plugging-capping-capsulating-labeling-printing-line

red wine bottles labeling samples.jpg

pvc caps shrinking samples.jpg

SCREW CAPPING ROPP VON Karen.jpg

After-sales service for automatic red wine filling line  YX series from PENGLAI CORP

after-sales service for the whole line.jpg

Payment term: T/T 50%deposit, the balance paid before delivery.
Package: Each machine wrapped by PO film, then packed to standard wooden case.
Delivery time: Within 25 workdays after received your deposit.
This machine shall enjoy 1 year warranty and life-long maintenance service (Remark: Customer should use the consumption material appointed by us, or the failure of machine hereby induced shall not be in the warranty range)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
