loose powder cosmetics packaging machinery with rotary cutter system small bags form fill seal bagging equipment
loose powder cosmetics packaging machinery with rotary cutter system small bags form fill seal bagging equipment
Model YX-240AA
Packaging speed 30-60bags/min
Measuring range 0.5-80ml
Bag size(mm)
L:40-140 W:30-110
Max film220mm
Sealing type:3/4 sides sealing
(round corner bag)
Power 1200W
Net weight 230kg
Power supply: 220V,380V/50Hz,60Hz
Packaging film
Paper/PE,PP/Aluminum foil(all heating material)
Overall size(mm)L800*W700*H1600
Description

The Vertical form fill sealing machine (VFFS) is a type of automated assembly-line product packaging system, commonly used in the packaging industry for food, and a wide variety of other products. The machine constructs plastic bags out of a flat roll of plastic film, while simultaneously filling the bags with product and sealing the filled bags. Both solids and liquids can be bagged using this packaging system.
The typical machine is loaded with a continuous flat roll of plastic film, which has had labeling and artwork applied to the exterior or interior of the film. Note that while plastic is the most commonly used packaging material in the food industry, the technology can also be used to form continuous matalized foil/film, paper, and fabric product containers by changing the edge sealing/seaming methods. For some products the film may first be fed through a sterilizing chemical bath and dryer prior to use in the packaging system.

Powder packaging machine is suitable for food, pharmaceutical, cosmetic, pesticides, plastic products and special products in the industry, automatic packaging powder materials. Such as: food additives, milk powder, soy flour, protein powder, the powder, mask powder, pearl powder, coffee powder, cocoa powder, flour, health tea powder, glucose powder, soda powder.

Machine details&in stock&bags samples


CUtter PART for machinery.jpg

Stainless-steel-automatic-small-sachets-coffee-powder (2).jp

powder filling machines.jpg

Stainless-steel-automatic-small-sachets-coffee-powder (1).jp

sealing way from packing machines.png

Feature of model YX-240AA powder packing machine:
machine illustration.jpg
1.Automatic powder packing machine can finish the process like conveying bag,bag making,filling,weighing,sealing,cutting,counting,lot number,etc.

2.Bilingual display screen control system,stainless steel cabinet.Set up the required data(include filling,weighing,bag size,etc) in the visuable settings,the control system automatic optimization match with all the program so that achieve the best packing speed precisely.

3.Stepper Motor control,this system has the advantage of precise,needless to adjust the other parts.

4.It has color system controller,so that can get the complete trade mark design.

5.Suitable for the complex film and tin foil and other packing material.Fine packaging performance,low noise,clear sealing texture and strong sealing performance.

6.Mitsubishi PLC control,customize details according customer’s requirement

Basic parameter of YX-240AA powder packing machine:
YX-240AA powder packing machine (2).jpg

loose POWDER packing machine (1).jpg

loose POWDER packing machine (2).jpg
Type Model YX-240AA
Packaging speed 30-60bags/min
Measuring range  0.5-80ml
Bag size(mm)
L:40-140 W:30-110
Max film220mm
Sealing type:3/4 sides sealing
(round corner bag)
Power 1200W
Net weight 230kg
Power supply: 220V,380V/50Hz,60Hz
Packaging film
Paper/PE,PP/Aluminum foil(all heating material)
Overall size(mm)L800*W700*H1600

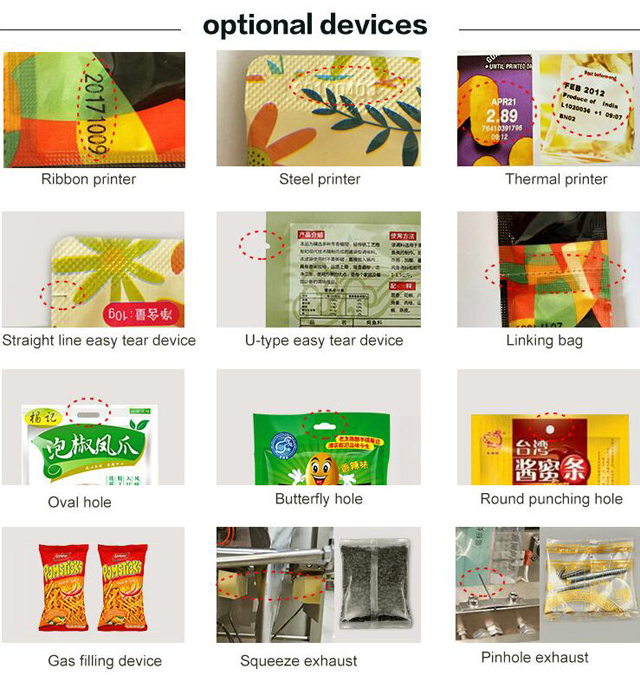

Optional Equipment for packing machine:
Stainless-steel-automatic-small-sachets-coffee-powder (1).jp
Thermal Printer

Flat cutter,Tooth cutter,continuous point cutter

Vacuum feeder

Operation on the powder filling packing machines with auger measuring system:

(1) Connect the electricity supply, the clear compressed air according to the machine's requirement, put the case shell on the floor well, adjust the work pressure to 0.6Mpa, fuel charging to the air cylinder and other parts. (advise using pure white oil).
(2) Put the packing materials on the film reel and fix the capsule (printing side facing outer or compound side facing inner). Put the packing materials according to the pictures.
(3) Put on the power switch, the machine is in waiting condition when the indicator light is on.
(4) Attempting to set temperature according to the temperature which the upper temperature controller and the lower temperature controller show when the packing material pass the board.

The instruction of auger measuring system from Powder filling system :

It consists of hopper/stirring system and measuring power screw worked by filling motor . The measurement is decided by the numbers of screw rotation , which can set on the screen of the machine .

pictures of auger filling.png

1. Adjusting the filling time

It is controlled by the wheel installed in the main axis , that is the signal will be delivered by the trigger head when sealing .

2. Adjusting the filling volume

auger filling system.jpg

Entering the setting state on the screen , adjusting the filling volume by change the parameters , and try fill working when have set the parameters , then check out the results between tried and demand parameters , and then alter the parameters to match it .

And the filling volume has close relation with the filling screw , for the common , factory will design the filling screw on the clients’ packing demands about the packing raw materials and packing volume . The bigger of the filling screw , the more of the filling volume . And the filling screw has the following types :

auger filling measuring in details.png

0#for:50ml~100ml                  1# for:30ml~50ml

2#for: 10ml~30ml                  3# for:5ml~20ml

4#for: 5ml~10ml                   5# for:1ml~5ml

Customizable machine:

We have Great customized and design ability. Any required custom-made machine can be designed and manufactured for convenient operation and reasonable cost, making your packaging system works smoothly.

Packaging of packing machines for delivery

WATER PACKING before ocean shipping.jpg

Installation:

1.We provide videos and instruction manual to show the process of  installation.

2.We provide training for installation for free in our factory.

3.We can send technician to buyer's factory to install the machine and provide training service.

After Sales Service:

►One year quality warranty and free lifetime technique support.

►Free spare parts would be supplied if machine broken within warranty period.

►After the warranty period, the spare parts for replacement are offered based on certain charge.
