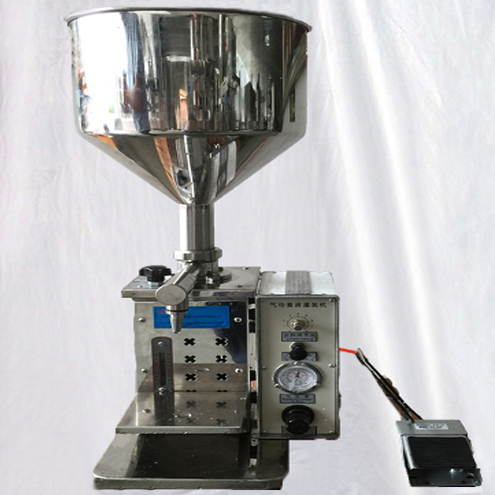

Small manual liquid filling machine pneumatic paste cream filler equipment tabletop type with Pedal controller&air regulator
Small manual liquid filling machine pneumatic paste cream filler equipment tabletop type with Pedal controller&air regulator
Model YX-A02
Filling range:5-50g
Measurement accuracy: ± 0.2-1ml
Filling speed:20-60 times / minute
Working pressure: 0.4-0.6Mpa
Hopper capacity:10 liters Weight:28kg (after packaging)
Dimensions:L × W × H: 340 × 340 × 780 (mm)
Description

A02 series manual filling machine adopts a piston type structure, the liquid, paste and other materials for 5-50g quantitative filling.

Filling of liquid, liquid food, oil, shampoo, shampoo cream liquid substance, with paste liquid filling machine function.

Applicable to the pharmaceutical, cosmetic, food, pesticides and special industries,

and also can be used for sealing the hose has the quantitative filling, is the ideal paste liquid filling equipment.

The A02 manual filling machine is specially designed by our factory for mrdium or small size enterprises,

laboratory,hospital pr beauty parlor in daily use chemical section.

pneumatic filling machines.jpg

Its configuration is compact,acts agility and easy to use,all the parts which dip in the materiel are made of

stainless steel and polytertrafluorprthylene.

The machine has simple and reasonable structure, convenient manual operation, without any energy.

With the filling volume regulator knob,

quantitative discharging, filling rate and filling speed can be controlled manually.

The material contact part uses stainless steel, suitable for use under acidic medium,

to meet the food, pharmaceutical production and health requirements.

The machine hopper capacity of 10 kg, the user can be set on the filling capacity.

close shot for pneumatic filling nozzles.jpg

Technical parameters of pneumatic filling machine manual model YX-A02

pedal filling machines.jpg

drawing of manual filler air.jpg

Drawing of manual filler pneumatic.jpg

Model YX-A02

Filling range:5-50gMeasurement accuracy: ± 0.2-1ml

Filling speed:20-60 times / minute

Working pressure: 0.4-0.6Mpa

Hopper capacity:10 liters   Weight:28kg (after packaging)

Dimensions:L × W × H: 340 × 340 × 780 (mm)
manual filling machine for liquid lotion.jpg

Packaging part together with the machine

manual for filling.jpg

►Nozzles:2 pcs

► 0-Ring:2 pcs

►Guide Manual:1 pcs

►Hexagon:2 pcs

►Screwdriver :1 pcs

►Foot pedal: 1pcs

Operational approach for model YX-A02 Pneumatic filler:

air valve part for manual filler.jpg

►Connect the machine to an air pump by using a 8mm diameter pipe.
►Presses the pedal switch to work in Jog mode and step on the pedal switch to work automatically.

►Use speed controller for inlet and outlest to adjust the filling speed.
Then adjust the filling volume the same as model YX-A manual filler.
Attention: This machine is not fit for filling the materials concretionary such as face cream or beef fat etc or
any materials with medium or high viscosity.

Shipping&delivery for manual filling machine with pedal pneumatic controlling system

carton packaging of manual filling amchiens.jpg

payment terms for labeling.jpg
