Cosmetic make-up loose powder filling jars line linear type three heads screw auger integrated with bottom labelling capping weight check equipment
Cosmetic make-up loose powder filling jars line linear type three heads screw auger integrated with bottom labelling capping weight check equipment
Filling part
Filling machine part model YX-PF03
Direction of Movement : Left to Right
Number of Filling Head : 3 Head
Capacity:50-60jars per min(filling volume 1.8g)
Electric Specification:
Main Motor (Stirrer) : 0.5 HP / 415 Volts / 50 Hz. – 3 Nos.
Conveyor Motor : 0.5 HP / 415 Volts / 50 Hz.
Vacuum Blower : 1 HP / 415 Volts / 50 Hz.
Servo Motor : 750 Watt
Air Consumption : 4 – 6 Kg.
Pressure Height of Conveyor : 860 mm (+ 50 mm adjustable height)
Machine Dimensions** : 2335mm (L) X 800mm (W) X 2000mm (H) approx
Case Dimensions** : 2700mm (L) X 1000mm (W) X 2400mm (H) approx
Net Weight : 600 Kg. Approx Gross Weight 850 Kg. Approx
± 2 % Filling accuracy on single dose.
All Contact Parts in SS 316
Dust collection facility
Adjustable height of Conveyor Belt.
Low Noise Level, Low Power Consumptions
Electrical supply : Single Phase + Neutral + Earthing
Electrical load : 1.8 KW
Air Pressure : Minimum 4 to 6 bar pressure
Description

The whole line(Automatic bottom labeling 3 head filling plugging cappingmachine with speed 40-45pcs/min, and clear label sensor)includes mainly four machines which are given as below:

1.Rotary turntable model YX-BS12;
2.Model YX-610B down side labeling machine
3.Model YX-PF03 Three heads filling machine powder auger filler;
4.Model YX-AC45 jars capping machine;
5.Model YX-MT6030A weight check

Drawing of machine loose powder filling line based on the samples&filling materials:

parts jars.jpg

Detailed sizes for the samples.png

loose POWDER samples (2).JPG

loose powder line.jpg

loose powder drawing.jpg
Herewith are listed the basic data for machines respectively:

loose powder filling line factory acceptance.JPG
Model YX-BS12 Bottles rotary turntable:
Model YX-BS12
Applicable specifications 20-1000 ml
Bottle diameter φ 10-φ80 mm
The bottle height 85-300 mm
Production capacity 0-100 BPM (speed adjustable)
Voltage 220 v50hz
Power 0.5 kw
Weight 100kg
Machine size 1300*1000*1300mm
Stainless steel SUS304 material
Model YX-610B down side labeling machine:

labeling bottom jars machine.jpg
Name Parameter
Voltage AC220V50/60HZ
Power 500W
Size appearance 1800(L) 700(W) 1800(H) mm
Labeling Speed 200pcs/ min
Labeling accuracy ±1 mm (subject to the roughness of the plant)
Printer to use air 5 kg / cm2
Suitable height of objects 1-100 mm (which can be adjusted by your requirements)
Suitable wide of objects 10-80 mm (which can be adjusted by your requirements)

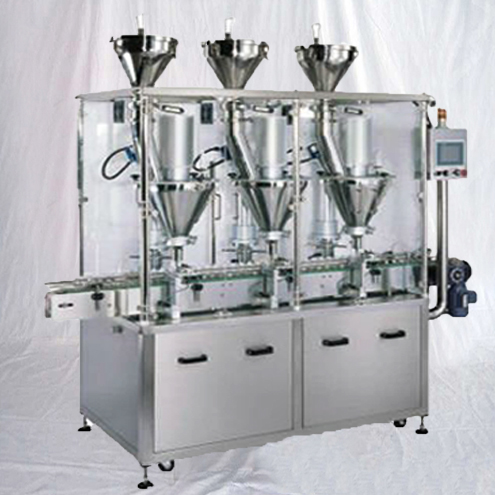

Model YX-PF03 auger filler equipments:

powder filler screw auger.JPG
Filling part
Filling machine part model YX-PF03
Direction of Movement : Left to Right
Number of Filling Head : 3 Head
Capacity:50-60jars per min(filling volume 1.8g)
Electric Specification:
                                Main Motor (Stirrer) : 0.5 HP / 415 Volts / 50 Hz. – 3 Nos.
                                Conveyor Motor        : 0.5 HP / 415 Volts / 50 Hz.
                                Vacuum Blower         : 1 HP / 415 Volts / 50 Hz.
                                Servo Motor               : 750 Watt
Air Consumption :  4 – 6 Kg.
Pressure Height of Conveyor :  860 mm (+ 50 mm adjustable height)
Machine Dimensions** : 2335mm (L) X 800mm (W) X 2000mm (H) approx
Case Dimensions** : 2700mm (L) X 1000mm (W) X 2400mm (H) approx
Net Weight : 600 Kg. Approx Gross Weight 850 Kg. Approx
± 2 % Filling accuracy on single dose.
All Contact Parts in SS 316
Dust collection facility
Adjustable height of Conveyor Belt.
Low Noise Level, Low Power Consumptions
Electrical supply : Single Phase + Neutral + Earthing
Electrical load : 1.8 KW
Air Pressure : Minimum 4 to 6 bar pressure
Model Caps screw capping machine YX-AC45

capping machine.JPG
1.Power supply 220V;50Hz
2.Power 1.5Kw
3.Pneumatic (air-operated) source 0.6 Mpa clean and stable compressed air
4.Suitable bottles diameter: Φ40mm~Φ100mm; height : 60mm~230mm
5.Suitable caps diameter of caps: Φ20mm~Φ70mm;height of caps: Φ15mm~Φ30mm can be customized
6.Production capacity ≤2500bottles/hour
7.Machine weight about 580Kg
8.Dimension (L*W*H) 2000mm*1000mm*1780mm
Model YX-MT6030 weight check inline:

weight check.JPG
Weighing Capacity (g) less than 200g
Weighing Accuracy (g) ±0.2g~±0.5g
Minimum graduation(g) 0.1g
Weighing speed(pcs/m) 40-70m/min max:200 pec/min
Power Supply AC220V±7%; 50Hz; 250VA(customized)
Material SUS304
Working Condition Temperature: 0~40℃ Humidity: 30%~95%
Conveyor belt length: 1600mm
Conveyor belt height: 750±50mm
Warning: Buzzer alarm &conveyor belt running in stop
Machine Weight 110kg size: 200*900*1500mm

Final product samples:

final product filling line.jpg

loose powder jars samples.JPG

final samples.JPG

ocean shipping wooden case packing.jpg

wooden case packaging for ocean shipping (1).jpg

wooden case packaging for ocean shipping (2).jpg
