Hair care coconut oil small bottles 1ml to 100ml filling press type capping machine rotary filler capper with bottle arranging feeding system
Hair care coconut oil small bottles 1ml to 100ml filling press type capping machine rotary filler capper with bottle arranging feeding system
Model YX-20G
Filling volume 1ml to 120ml(filling volume customized)
Speed: 1500-1800bph
Rated voltage: 220V/50Hz(110V/60HZ customized)
Machine Power: 850W Oil Hopper size:150Liter
Air Pressure: 0.5-0.7MPa
Air consumption: 1m3/min
Current : 2.4A Size: 2600*2400*2000mm
Weight: 495kg
Description

Model YX-20G hair care oil filling press capping machine with bottles arranging system is mainly used for filling the small plastic bottles with curved type caps. The machine specially designed according to customer's samples adopts the press-capping structure instead of traditional screw-type capping system due

to the flip-flap caps. There is no screw type in the caps; Alternatively it is the lock type caps which requires the arc-shaped structure in the capping head to notch with the caps type. The compact type 6 heads oil filling capping machine is a customized one manufactured based on the large quantityof samples like caps and bottles which

finally have been completed for the hair oil filling-capping production process. The kind of product is common in south eastern asia and south-Asia countries where there plant many coconut trees which offer the raw materials for making hair care oil. Thus this kind of filling machine becomes more and more popular in the lands.

* Notes prior to first use*

1: Before the machine is plugged in, make sure the power switch is in the closed state, and then follow the instruction.

2: If the machine does not run in a long time, it should be wiped with a piece of dry cloth and must not be cleaned with any corrosive cleaning agent.

3: It is strictly prohibited to spurt any liquid into the electric box of the machine, so as to avoid corrosion to the internal electrical components and cause short circuit.

4: Check according to the equipment packing list models, specifications and quantity of the equipment and materials to make sure that they meet the requirements of design and product standards and accompanied by certificates of conformity.

5: Check the appearance of the equipment to make sure that it is free from any deformation, damage and corrosion, and all spindles that they should be flexibly rotating without any blockage.

6: This machine is working under single phase AC 230V, and the flat 3-legged power plug should be plugged into the power socket with a ground wire.

Drawing&structure of Model YX-20G oil liquid filling capping line:

Drawing of filling capping line.jpg

Dimension for filling line.jpg

Technical Parameters of model YX-20G oil filling line:

filling capping line model YX-20G.jpg

FILLING nozzles.jpg

Filling volume 1ml to 120ml(filling volume customized)

Speed: 1500-1800bph Filling nozzle: 6pcs

Rated voltage: 220V/50Hz(110V/60HZ customized)

Machine Power: 850W Oil Hopper size:150Liter

Air Pressure:  0.5-0.7MPa

Air consumption: 1m3/min

Current : 2.4A  Size: 2600*2400*2000mm

Weight: 495kg

Configuration of model YX-20G rotary filling press capping machine with bottles arranging system:

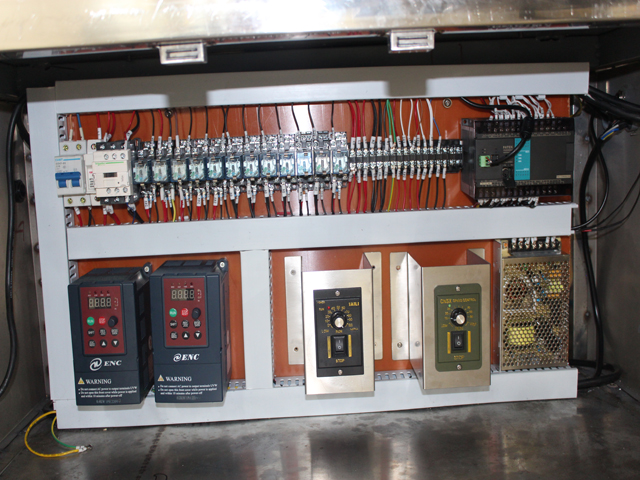

electronics of filling line.jpg

Sr

Name

Brand

Qty

1

PLC

Panasonic

1

2

Touch Screen

WenView

1

3

Servo motor

yako

2

4

90W speed-adjusting motor

yako

3

5

200W three-phase motor

Yako

2

6

370W three-phase motor

Yako

1

7

Invertor

ENC

2

8

Dial

---

 1

9

Sensor etc

Kenence

N

10

Cabinet made of SS304,Main parts made of Alumina and Chrom-plating  as well as SS304;

Instructions for Head Filling Electrical Operation

Structure of filling capping line.jpg

Structure of filling line.jpg
I. Turn on the power button and enter into the following interface:

Operation language.jpg

This screen provides the information about the manufacturer, contact number and the system
operating language, etc.
Click Operation language CN.jpg; wherein the column “English” is displayed in English; click column “Chinese”, and the screen is displayed in Chinese.

II. Click and enter into the following screen

Parameter for screen.jpg

This screen provides the client with the following functions such as initiation, stop, output
count, reset and the cleaning of turn tale, etc.
1. Device initiation

Click man.jpgthis button; when displaying “Auto”, and eliminating other faults,

clickstart.jpgthis button, the device can be normally initiated.

2. Data reset
When the state column displays “Production batch count complete!”, clickClear.jpg , and
the numerical value of the output count columnouyput pcs.jpg is displayed
as 0.
3. Cleaning of the turn plate
Click and
the numerical value of the output count column is displayed
as 0.

3. Cleaning of the turn plate
Click this button Clear.jpg, and the bottle unscrambler is stopped; when the material
on the turn plate is cleaned up, the bottle unscrambler can be normally operated

III. ClickManual.jpg to enter into the following screen

Touch screen.jpg

This screen refers to the manual debugging page, comprising three working stations: oiling,
placing the outer lid and pressing the outer lid.
Each station comprises single-step action and single cycle action. These functions are mainly
used for commissioning.

IV. Click to Station.jpgenter into the following screen:

Station for filling capping.jpg

This page shows the working station selecting switches; three working station switches are at
“ON” under the normal production condition.

V. Click Parameter.jpgto enter into the following screen:


This screen provides the consumer with various technological parameters.
► Oil suction pump rising speed: if the value is greater, the speed of the oil suction stepping
motor will be faster.
► Oil suction pump diving speed: if the value is greater, the descent speed of the oil suction
stepping motor will be faster.
►Filling nozzle rising speed: if the value is greater, the descent speed of the filling pinhead
to the bottle mouth will be faster.
►Filling nozzle diving speed: if the value is greater, the ascent speed of the pinhead will be
faster after filling.
► Filling volume: required for filling one bottle.
►Lid pressing complete staying time: the stay time after the pressing lid station is placed properly.
►Lid in place staying time: stay a certain time after the outer lid of the upper station is
placed properly, and the cylinder turns back.
VI. Alarm and the method for processing the fault


1. Press the emergent stop
When the touch screen displays “Emergency”, it indicates that the emergent stop button has
been pressed, and any button is invalid.
Processing method: open the emergent stop button.
2. When the touch screen displays “Production batch count complete!”
Processing method: open the monitor operating screen, and click the reset button; at this time,
the value displayed on “Output” column shall be 0.

Bottles Samples&Wooden case packing for 6 heads oil filling press capping machine model YX-20G:

samples for filling line.jpg

Wooden case packing for filling machinery.jpg
