automatic small cosmetic bottles filling plugging capping labeling line nail polish filler shoulder capper equipments
automatic small cosmetic bottles filling plugging capping labeling line nail polish filler shoulder capper equipments
model YX-40G
Applicable specifications 2-50ml
Filling head one heads
Production capacity 1 heads: 30-50 bottle /min
Filling accuracy ±1%
Capping rate ≥99%
Power supply 380V / 50Hz
Power 2kW
Total dimension 2050* 1000 * 1500MM
Weight: 480kg
Description

This nail polish filling machine combines mechanical/pneumatic/automatic technology as a new innovation generation
of special Machine in nail polish liquid filling with high automation/rate of finished products/stability and widely
adaptability etc. characteristics, so that it is the favor of the numerous customers. It becomes perfect & maturity day
by day during consummate constantly in years.

This machine is suitable to fill the abnormity vials such as rotundity/flat/prism etc. with low filling measurement warp
and suitable to many kinds of stoppers & caps, so that it has the obvious advantages compared with this kind
machines worldwide. It is completely met the GMP regulation by means of the powerful advantages of our company
in design/manufacture for non-standard products.
Main performance and structure features:

nail polish filler line.jpg

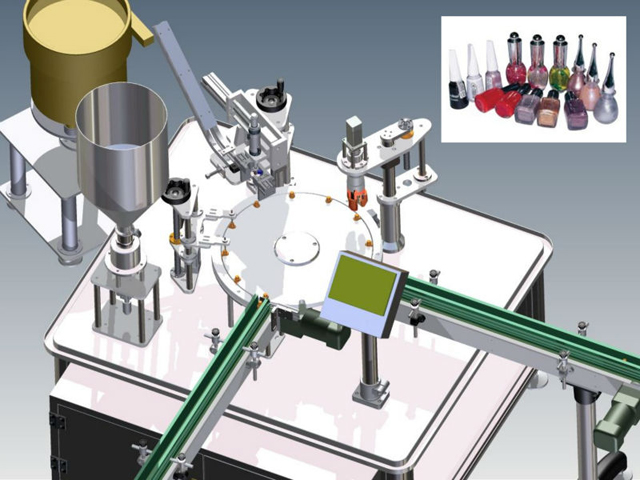

drawing for filler capper.jpg
This machine is suitable for the filling of 2-50ml liquid. Mainly used for the filling linkage production of various liquid
materials in pharmaceutical, food, chemical industry.The production line is fully compliant with the GMP requirements
1. No bottle no filling,no bottle no capping,suck out foam.
2. Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP
regulation.
3. Plugging and capping by manipulator automatically.
4. Easy operation and convenient maintenance.

Parameter of model YX-40G filling capping labeling line

nail polish filling sealing machinery.jpg

nail polish filling rotary capping.jpg

model YX-40G

Filling capping part
Applicable specifications     2-50ml
Filling head     one heads
Production capacity     1 heads: 30-50 bottle /min
Filling accuracy     ±1%
Capping rate     ≥99%
Power supply     380V / 50Hz
Power     2kW
Total dimension     2050* 1000 * 1500MM
Weight: 480kg

Labeling part:

labeling machinery automatic.jpg

Applicable Label width (backing paper width / mm): 15mm ~ 150mm

Applicable Products diameter (for round bottle) and height: diameter: φ25mm ~ φ100mm

Height: 25mm ~ 230mm

Applicable standard roll diameter (mm): φ280mm

Applicable standard roll diameter (mm): φ76mm

Labeling accuracy (mm): ± 1mm

The standard speed (m / min): Servo: 5 ~ 25m/min

Stepping: 5 ~ 19m/min

Labeling speed (pcs / min): Stepping: 30 ~ 80pcs/min (with the bottle and label size)

Servo: 40 ~ 120pcs/min

Conveyor speed (m / min): 5 ~ 25m/min

Weight (kg): about 185kg

Frequency (HZ): 50HZ  Voltage (V): 220V  Power (W): 530W
Production process:

close pictures for filling capping.jpg

filling nozzle capping.jpg

capping part.jpg

rotary filler equipment.jpg

bottles with rotary star wheel for labeling.jpg
When the bottles in an even row which sent by conveyor reach filling part, filling nozzles will go deep down to inside
of bottle and begin to fill. The nozzle will go up slightly to bottleneck, then filling stops. The conveyor will convey
bottles to equal-index plate. The plate makes bottles do intermittent motion in the function of cam indexer. Bottles
arrive at plugging part, then go to capping part. When finish capping, bottles will be sent to the next process by
conveyor.

Samples part for nail polish:

nail polish glass bottles.jpg

nail polish filling capping.jpg

After-sales service of filling capping machine for cosmetic&pharma liquid

after sales service for filler capper.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
