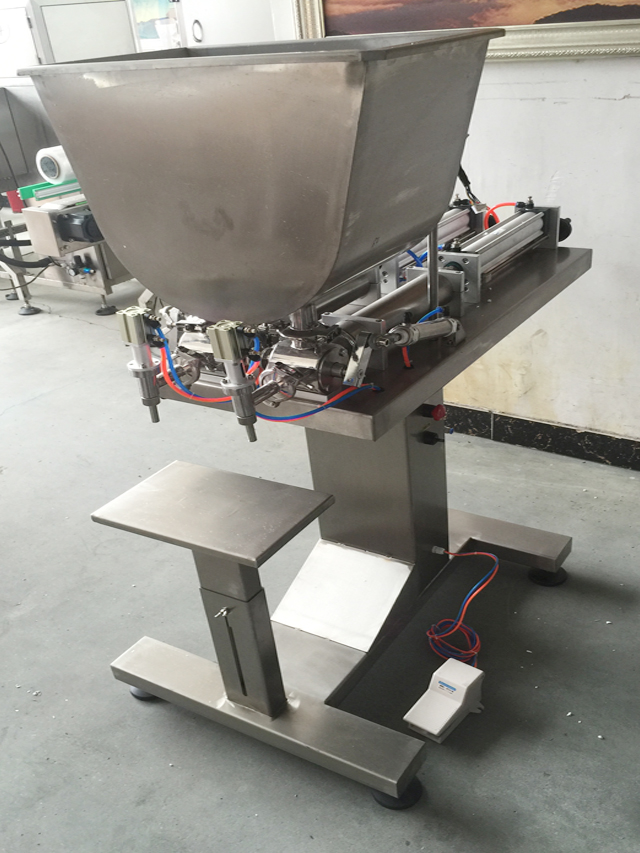

Dual heads pepper sauce mixing filling machine stand-up type mixer filler high viscosity materials two nozzles equipment
Dual heads pepper sauce mixing filling machine stand-up type mixer filler high viscosity materials two nozzles equipment
Model YX-V02-1000ml
semi automatic for 1000ml cream filling
Material of machine : Stainless steel 304
Fillable range : 1000ml
Air pressure range : 4-6kg/cm2
Filling speed : 0-30bottles per minute
Net weight : 80KG
Gross weight : 100KG
Filling head : Double heads
Machine dimension:1200*550*595mm
Stainless Steel Body machine
Rugged Rotary Valve System Design
Pneumatic piston filling
Piston Feed Speed Adjustable
Anti-drip and filling head place and height adjustable
High Filling Accuracy (+/- 1%)
Description

The machine liquid&cream filling double head is suitable for filling food trades(such as: pearl milk tea,nata de coco ,thick broad-bean sauce, chili sauce, peanut sauce etc);cosmetics(shampoo frost  shower gel);daily health product(toothpaste)

There is added with the mixer inside hopper to stir the materials lest the materials high viscosity agglomerate during filling. The mixer is powered by separated motor.

pepper sauce for filling.jpg

PO filling machine.jpg

Basic features of filling machine double head model YX-V02 series

double side filling machine design.jpg

application of filling machinery.jpg

1,Be used for filling with fluid liquid and other material;

2,Some of the materials used 316L stainless steel;

3,Full pneumatic control, easy to operate,remove and clean. Ideal equipment for filling inflammable, explosive materials.

Function of Control Panel from cream filling machines model YX-V02Series:

filling volume setting up.jpg

Semi Auto/Auto filling switch

Air Pressure Gauge

Air Intake Pressure Adjust

Filling Volume Adjust

Model YX-V02 Double heads liquid filling machine  semi automatic for 1000ml cream filling


air connection part.jpg
Model YX-V02-1000ml Double heads liquid filling machine
semi automatic for 1000ml cream filling
Material of machine : Stainless steel 304
Fillable range : 1000ml
Air pressure range : 4-6kg/cm2
Filling speed : 0-30bottles per minute
Net weight :80KG
Gross weight :100KG
Filling head : Double heads
Machine dimension:1200*550*595mm
Stainless Steel Body machine
Rugged Rotary Valve System Design
Pneumatic piston filling
Piston Feed Speed Adjustable
Anti-drip and filling head place and height adjustable
High Filling Accuracy (+/- 1%)

Detailed shot of double heads cream filling machine model YX-V02 series

vertical filling machine nozzles.JPG

nozzles two.jpg

filling machine with SS Steel.jpg

air gauge for accurate filling volume.jpg

Wooden case packaging before DHL delivery door to door service

wooden case for filling machines.jpg

wooden case for filling machine shipping via air cost (4).JP

wooden case for filling machine shipping via air cost (7).JP

WOODEN Case for filler.JPG

wooden case for filling machine shipping via air cost (1).JP

wooden case for filling machine shipping via air cost (8).JP

Machines in stock &plant for storing &manufacturing

stock for filling machinery.jpg

FAQ on double heads liquid&cream&lotion&sauce filling machine model YX-V02-1000ML

spare parts for two filling nozzles machines.jpg

►Is it used for liquid or paste ?

 -- it is suitablefor pure liquid.

►What is the viscosity?

 --Suitable to fill low to high-density liquids (0 – 10,000 cps)

►what is the detail specification?

1).Material of machine:Stainless steel 304 meet GMP approved.

2).Fillable range :90-1000ml

3).Air pressure range  :  4-6kg/cm2

4).Filling speed : 0-30bottles per minute

5).Filling head:  single head

►How to Maintenance machinery.

1).Please regular inspection equipment the fuselage for stainless steel shell, when clean do not use tip, hard edge tool scrape the surface

2)Usable alcohol scrub surface besmirch.

3). wear the ring to change in time.

►Why buy it from you?

Because our products is high quality and lower price than other supplier, and meanwhile, we will supply you the better service for you, especially after-sale service. And we can give you Technical guidance, when it does not work effectively.

►Do you have warranty for it?

Yes, we have warranty for it. 12 months limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty.

►Which ways can you shipping it?

We can send it by express UPS, DHL, FEDEX and EMS, for 3-5 days. Or if your order is lager quantity, we can send by sea, maybe it will cost a long time.

filling machinery PENGLAI Brand.jpg
