Lotion cosmetic cream tubes dual filling head ultrasonic sealing machine automatic rotary tube tails end sealer equipment
Lotion cosmetic cream tubes dual filling head ultrasonic sealing machine automatic rotary tube tails end sealer equipment
Model YX-AUF400-II
Sealing Dia 5-50mm
Output power 2.8kW
Voltage AC220V/single phase 50/60HZ
Machine weight 390kgs
After packaging 420kgs
Machine size 1200*1540*1700mm
Filling Range A:6-60ml, B:10-120ml,C:25-250ml,D:250-500ml (Customer made available)
Control Style PLC control
Time adjust electronic adjust
Packaging Plywooden case packaging
Description

YX-AUF400-II Automatic Filling Machines with Two Filling Nozzles Plastic Tube Filling Machines is suitable for filling tubes made of plastic &laminated PP materials;

Machine working process:

Auto Tube Loading   →   Auto Tube Orientation  →   Auto Filling    →   Auto Sealing

→  Auto Date printing   →    Auto trimming  →   Auto Tube Ejecting ;

Features of automatic tubes filling machine:

Automatic Filling Machines Plastic Tube Filling Machines Features:

model YX-AUF400 tubes filling machine (5).jpg
1. Easy to operate and maintain.
2. Automatic positioning, filling,  welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
6. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
7. Ultrasonic frequency can meet international standard, no harmful to human being or environment
8. Can be work in time, not need wait the heat time .
Basic parameter of fully automatic tubes feeding anti-dropping filling system:

side pictures for tubes filling sealing.jpg

Model YX-AUF400-II
Sealing Dia 5-50mm
Output power 2.8kW
Voltage AC220V/single phase  50/60HZ
Machine weight  390kgs
After packaging  420kgs
Machine size  1200*1540*1700mm
Filling Range

A:6-60ml, B:10-120ml,C:25-250ml,D:250-500ml (Customer made available)

Control Style PLC control
Time adjust  electronic adjust
Packaging Plywooden case packaging

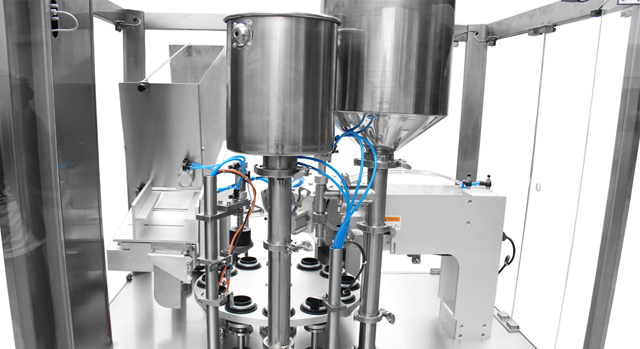

Details of model YX-AUF400 automatic tubes filling machine

Drawing-1_for ultrasonic tubes filling sealing MC (2).jpg

Drawing-1_for ultrasonic tubes filling sealing MC (1).jpg

The filling system is for multipurpose in filling materials from lower viscosity like water to higher viscosity like honey

Multipurpse filling machine.jpg

The filling nozzle functions as anti-dripping; All the filling nozzles adapters include brass core &stainless steel spring and

NBR O-ring&Ball

anti-drop filling nozzles.jpg

Ultrasonic activated sensor for detecting the tubes before ultrasound cutting&sealing:

ultrasonic sensor.jpg

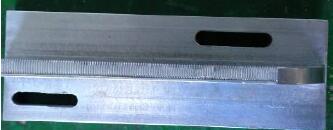

Ultrasonic sealing Mold

sealing mold cutter.jpg

PLC controlling panel is easy to operate with power switch,emergency stop button and Siren; The sudden stop for

emergency use;

PLC panel.jpg

The disc consists of 10pcs of tubes holders  which is specially designed with rubber ring and PP mold; Different diameter of

tubes requires different set of tube holders;

PLC panel.jpg

Tube feeding system delivers the tubes in automatic way ;

Feeding shot.jpg

Configuration&Spare parts list of automatic filling ultrasonic sealing machine

Components for model YX-AUF400
Eye Sensor MATSUSHITA Japan
Ultrasonic Transducer Amria China
Controlling Omron Japan
PLC Delta Taiwan
Motor Namwan China
Main Motor Gear Head Taiwan
Cylinder AirTac Taiwan
Selenoid Jaurling China
Relay Omron Japan
Inductive Switch AirTac Taiwan
model : Spare parts Pic
1 Ultrasonic Power  board

  From Iphone 112

2 eletric eyes

  DSC_1580_副本

3 Ultrasonic transducer

  8M5Z~}HGU5P$VW}E$2(AZPQ

4 electromagnetic valve

  From Iphone 116

5 upper mould

  %)LFI%XL(01FIAFS7_X7DC1,QQ截图20140913143438_副本

    From Iphone 110

6 down mould
7 Tube holder

  QQ图片20151106142625

8 Motor/segregator

  F6759A2E029A16F409B2CAA761A9B78D

9 Relay

  4D19684CBB382B2C55FC1F8AC41505D9

    34$U6][Z8VABYB]J{2__HJ4

10 Cylinder ACQ50*20-S-B
11 Cylinder MA20*100-S-CA

  2}G)2`~]64GDGOJ`$N)OKAK

12 Cylinder MA20*101-S-CA

  0PEO`0U]6K_6ARR0ZFDDC2K


After-sales service for model YX-AUF400 ultrasonic tubes filling sealing machine:

tubes samples for cream filling.jpg

Wooden case packaging for model YX-UF100B ultrasonic tubes sealing machine +horizontal filling equipment

wooden case packing for tubes filling sealing.jpg

After-sales service for ultrasonic tubes sealing machine horizontal filling 5-1000ml semi automatic model YX-UF100B

after sales service for filling sealing machine.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents,

misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician

 will go to your place to install and

test the machine and also training your worker to operating the machine

(The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country)

 should be on your account and you need paid

for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will

go to your place to fixed the machine

as soon as possible. The cost should be in your account.(as above).
