SHENZHEN PENGLAI Industrial Corporation Limited
SINCE 2003
double sides labeling equipment for plastic&glass bottles non-sticker labeller machine
double sides labeling equipment for plastic&glass bottles non-sticker labeller machine
Parameter of bottle labeling machine:
Model YX-650A
Supply power (V/Hz) AC 220/50 110/60
Power (W) 1500
Labeling precision (mm) ±1.0
Labeling size (mm) Height 15-100mm Length 20~300mm
Bottle size (mm) Outer Diameter 12-100mm Height 30-200mm
Capacity (b/m) 40-120
Dimension(L×W×H)(mm) 2200×1400×1550
N.W(kg) 320
Description

 The double side automatic labeling machine is suitable for square bottles or flat bottles with double mark or single mark . The shape belt can be inclined, and the labeling head can be adjusted  at eight orientations, so the machine can be adhustd successfully in several minutes for any bottle.

The pressure between the active axle and  press roller can be adjusted , so the running direction of the lanel can be adjusted freely,The label is only pressed flexibly without causing any distortion .

The labeling head adopts the structure of the double press rollersl,it guatantees that the label is pulled tightly but not broken because of the underneath paper die-cutting , the sepatated clutch makes the strain more balanced.The touch screen based human interface in chinese and English with one online helping system makes it easy for operate the machine. The press belt is feared into the main transporting line , so it makes the two transporting lines work in synchronous absolutely.

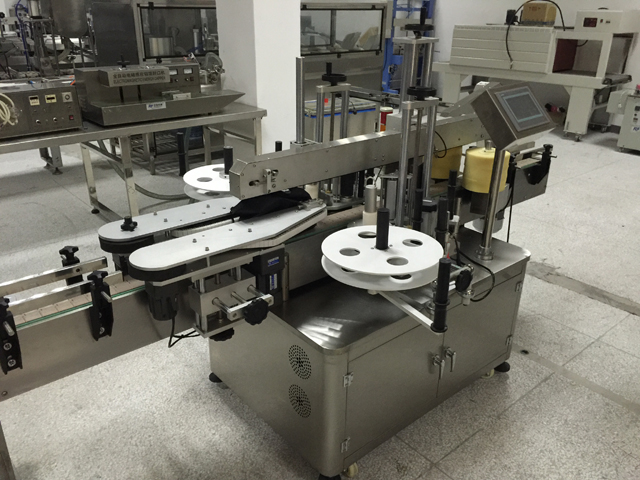

double sided labeling machinery.jpg

The automatic labeling machine is supplied with the famous sever motor ,so it realizes real closed loop controlling and it avoids the phenomenon of "the blind man walk" when supplied with the stepper motor.The multi channel encoder detects labeling position precisely at high speed.he label is pressed by a flap after appying on bottle and pressed by the active and passive sponge rollers.so when the label is stuck it has not any  bladder.It is especially applicable to the crystal bottles labled with transparent labels.The optional air driving and roller labeling set can label round bottles precisely.

 bottle labeling plant for manufacturing.jpg

Parameter of bottle labeling machine model YX-650A:


Supply power (V/Hz) AC 220/50 110/60
Power (W) 1500
Labeling precision (mm) ±1.0
Labeling size (mm) Height 15-100mm Length 20300mm
Bottle size (mm) Outer Diameter 12-100mm Height 30-200mm
Capacity (b/m) 40-120
DimensionL×W×H(mm) 2200×1400×1550
N.W(kg) 320

labeling machine from PENGLAI.jpg

Penglai since 1992 has been manufacturing the cosmetic&food making and packaging machinery.In these field we have the experience rich enough to solve the questions encountered by our customers from both home and abroad.For more information about high quality machinery sowie Etikettiermaschine fuer Flaschen,please email via jackdu999@yahoo.com or browse our website www.penglaichina.com
