Cusomized vacuum emulsifier homogenizer equipment vacuum blending pot with load cell weighing system electric heating 350L
Cusomized vacuum emulsifier homogenizer equipment vacuum blending pot with load cell weighing system electric heating 350L
Model YX-VME350L
Mark for the 300L mixing tank
Main 350 liter316 SS vacuum scraper tank
Load cell weight information
Homogenizer
220 liter water pot with electric heating
Control Panel
Power 22.5KW
Supply power 220V/60HZ three phase for USA Standard
Two packaging size : big carton 1350X2450X2400(L*W*H) 1700X2000X2100(L*W*H)
Weight : 1200kg
Description

This equipment vacuum cream making machine emulsifier pot with electric heating is a set of vacuum deaeration, mixing, homogenizing, heating, electric control and other functions in one,

it is the production of product high-grade paste, honey class ideal equipment,

this equipment is consisted of vacuum homogenizing emulsifying pot, oil pan, water boiler, operation platform, a vacuum system, pressing system and so on.

cream making process homogenizer.jpg


Performance and characteristics

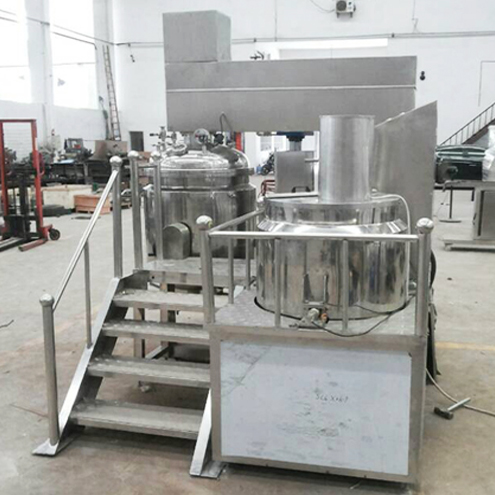

Actual pictures customized vacuum emulsifier machine 350L with only water tanks load cell weighing button controlling

system finished machine in factory

emulsifier vacuum for cream.jpg

1,Its stirring adopts the speed of stepless regulation, so that the mixing line speed in the 0-80/min adjusted arbitrarily, it will meet different requirements.



2,The advanced homogenizer was made in ROSS company of American technology, its structure unique and efficiency superior .



3,The operation is simple and homogeneous emulsion effect is better.



4,It adopts the German Frug water circulation homogenizing airproof structure, to overcome the problem of ordinary seal leakage, it will not burn out the sealing ring in the high viscosity or no material condition .



5,Where a contact material parts are imported stainless steel material, the container surface mirror polishing 300EMSH ( sanitary ) and comply with the hygiene requirements.



6,The vacuum suction, vacuum deaeration and whole process is finished under vacuum condition, it will be not infected bye cell and prolong the shelf life of the products.

Standard configuration

load cell display for emulsifier.jpg



BUTTON controlling system for vacuum mixing machines.jpg



a,The main pot, water tank, the tank

b,A vacuum pump and a synchronous electromagnetic valve

c,Emulsifier and material filter

d,Stainless steel operating platform

e,Frequency debugger and an electric control box



Basic parameter of model YX-VME350L emulsifier machine homogenizer equipment

emulsifier homogenizer vacuum.jpg



1.Main Boiler (Double Layer)
No Item Configuration and Parameters Mark
1.1 Volume Overall volume:350L;Working Volume:300L Loading Coefficiency 0.8
1.2 Heating Electric heating
1.3 Basic Structure

Three layers,the cover can be lifting ,

dumping system,the blender is bidirectional,Top homogenizing;water cooling - heating coat,Insulation coat


1.4 Tank Material contact later:SUS316L;Thickness:6mm; Jacket 6mm; Outer:SUS304,Thickness:2.5mm   Total Thickness:50mm
1.5 Cover

Material filter,Vacuum Pressure meter,Vacuum Exhaust Valve,

Vacuum Port,sight glass light,Vision window,inlet,

sight glass with wiper and bulb, rotary CIP  heads, 10 liters hopper;Vacuum water pump unit;

No Dead space,
Sanitory Valve
1.6 agitator scraped SUS316L
Stirring coefficiency: Stirrer motor:3KW,Speed:0~83R/M; ABB motor,
Mitsubishi inveter(Japan)
1.7 Homogeneous Way Installation,internal circulation; SUS316L
Homogeneous
coefficiency
Motor Power7.5KW,Rotating speed 0-3600R/M ABB motor,
Mitsubishi inveter(Japan)
Processing Rotor and Stator in Wire cutting,assembled after polishing Balance process axle
1.8 sealing Adopting burgmann Machinery Seal,Japan NSK Rolling Bearing;
1.9 polishing In&outside hygiene grades,conforming GMP standard S320U
2.Water Boiler
2.1 Volume Design volume:220L;working capacity :180L; Loading Coefficiency 0.8
2.2 Heating electric heating,Tap water cooling Power: 12KW
2.3 Construction three layers,Top stirring,Botton outlet,Insulation coat
2.4 Material Inner:SUS316,Thickness 3mm SGS certificated
Jacket:Q235B 5mm thickness Total Thickness:50mm
Outer shell: SUS304,2mm thickness Heat Preservatory:Silicon Sulphate
2.5 Agitation Top blending,power 0.55KW,1440r/m ABB motor
2.6 polishing 300EMSH,GMP standard 320U

 Spare&easily-worn parts for vacuum emulsifier machines model YX-VME350L

Item

Number

spare parts for vacuum mixer.jpg

Temperature Controller

2

Heating rods

2

thermocouple

2

O circle

2

O-circle Small

2

Bearing

2

Bearing Small

2

Samples of cream made from vacuum emulsifiers blending pot


cream mixer.jpg

Packaging size &wooden case packing before shipping delivery

film protective for vacuum mixer.jpg

wooden case packaging machines.jpg

Two packaging size : big carton 1350X2450X2400(L*W*H)  1700X2000X2100(L*W*H)

After sales service &guarantee for vacuum emulsifier machine with load cell weighing system electric heating

 PAYMENT TERMS SMALL .jpg

Guarantee: for all the machine, it claims one year for guarantee.



(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine

(The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
