automatic cream jars thread capping machine with Robot containers capper equipment automated caps vibrator feeding system
automatic cream jars thread capping machine with Robot containers capper equipment automated caps vibrator feeding system
Automatic jars capping machines with robot&bowls feeding system
Machine type YX-Z40
Kinds of revolving caps Screw thread revolving cap
Capacity 40-60b/min
Voltage 3 phase 380V/AC 220 Optional
Power 1.2kw
Air consume 30L/min
Weight 500KG
Dimension 2000mm*1300mm*1500mm
Description

Main Use on automatic cream jars thread capping machine with Robot containers capper equipment automated caps vibrator feeding system model YX-Z40

apply to all kinds of cosmetic, medicine, veterinary medicine, pesticide, lubricating oil industry cap machine equipment
Principle and Features
Electrical automatic control, it is stable; With capping positioning
device, locked cover standard, the operation is convenient; Lock cover a wide range, can spin various shapes specifications of cap;
Capping speed, the prison of spin, simultaneously also may according to need to adjust the tightnessof rewinding.

Machines details for jars capping machine :

parts in details.jpg

Drawing of star wheels for rotary cream jars capping machine:

star tray illustration for capping.jpg
Features of model YX-Z40 automatic capper equipment for glass plastic cream jars capping machine with automatic caps feeding bowl máquina que capsula automática

illustration for capping.jpg
1. No bottle or wrong position ,it will not work
2. the disk vibrate to drop the cap or feeding cap machine to drop the cap ,the caps are held by cylinder(the holding force can be regulated), there's no damage when revolving the caps.
3. The wresting force can be adjusted when locking different caps.
4. there's cushion setting on the head of the locking cap to further reduce the shattering rate
5. self-inspection :the machine will automatically stop when no bottle to lock,blocking when  out of exit,wrong orientation and damage of the bottle.
6. the locking head parts and the star tray can be replacing according to different container or bottle caps,the replacing operation is easy.
Technical Parameters of automatic capper equipment for glass plastic cream jars capping machine with automatic caps feeding bowl máquina que capsula automática:

ropp capping machines.jpg
Machine type  YX-Z40
Kinds of revolving caps  Screw thread revolving cap
Capacity  40-60b/min
Voltage 3 phase 380V/AC 220 Optional
Power  1.2kw
Air consume  30L/min
Weight  500KG
Dimension  2000mm*1300mm*1500mm

Actual shot for jars capping machine automatic

caps vibrator.jpg

control parts.jpg

Machines integrated with filling part &flow chart of PENGLAI brand filling capping machine rotary series

jars capping machines.jpg

jars filling capping part.jpg



Capping samples for glass jars

bottles samples for capping labeling (10).jpg

jars capping equipment.jpg

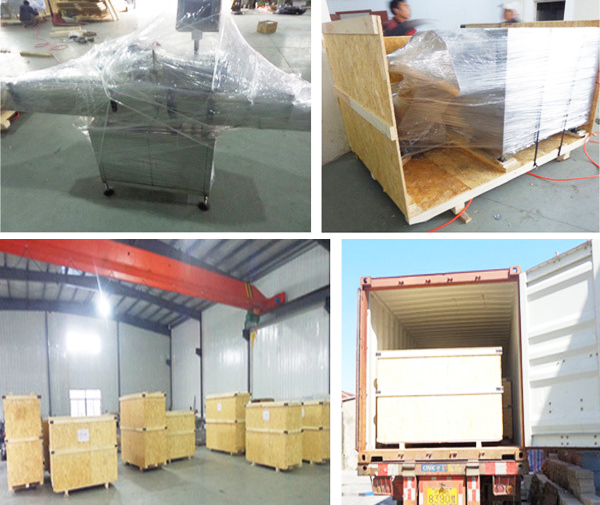

After-sales service for capping machine jars

packaging machinery wooden case.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
