Fully automatic plastic bottles capping machine with robot caps dispensor system rotary capper equipment for filling line
Fully automatic plastic bottles capping machine with robot caps dispensor system rotary capper equipment for filling line
Model Caps screw capping machine YX-AC45
1.Power supply 220V;50Hz
2.Power 1.5Kw
3.Pneumatic (air-operated) source 0.6 Mpa clean and stable compressed air
4.Suitable bottles diameter: Φ40mm~Φ100mm; height : 60mm~230mm
5.Suitable caps diameter of caps: Φ20mm~Φ70mm;height of caps: Φ15mm~Φ30mm can be customized
6.Production capacity ≤2500bottles/hour
7.Machine weight about 580Kg
8.Dimension (L*W*H) 2000mm*1000mm*1780mm
Description

The cap supplying system and the manipulator from capping machine screw capper with caps sorter automatic  works at the same step. When caps capped well, the bottles and the caps are relative static, the clutch releases, this can avoid bottles getting injured to achieve high qualified rate of capping. The surface of machine is made of high quality stainless steel, the electrical elements use international famous brand which makes machine more stable, good-looking meets GMP standard.

Videos operated in Customer water making plant


Major characteristics from single head capping machine automatic:

(1) This capping machine has one manipulator ,dispatches caps in high speed with no reverse caps which can be suitable for various types of bottles.



(2) The cap supplying system and the manipulator works at the same step. When caps capped well , the bottes and the caps are relative static ,the clutch releases ,this can avoid bottles getting injured to achieve high qualified rate of capping.



(3) The surface of machine is made of high quality stainless steel ,the eletrcial elements use international famous brand which makes machine more stable ,good-looking meets GMP standard.



Single head capping machine added with protective chamber :



details of single capping machine.jpg

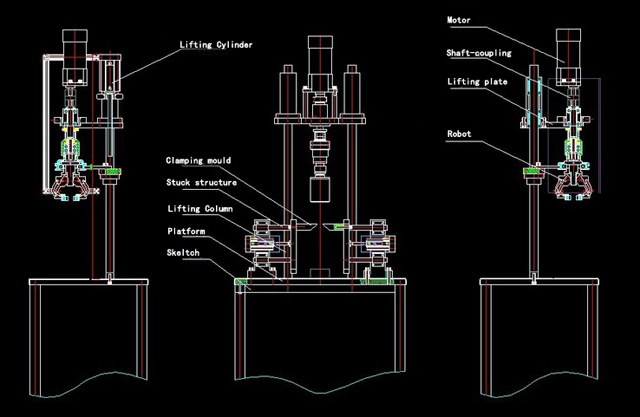

Main technical parameter of single head capping machine:



details of single capping machine.jpg

Machine testing run before handing over to customers

No.

Items

       Performance

 Model Caps screw capping machine YX-AC45

1

Power supply

220V;50Hz

2

Power

1.5Kw

3

Pneumatic (air-operated) source

0.6 Mpa clean and stable compressed air

4

Suitable bottles

diameter: Φ40mm~Φ100mm; height : 60mm~230mm

5

Suitable caps

diameter of caps: Φ20mm~Φ70mm;height of caps: Φ15mm~Φ30mm

can be customized

6

Production capacity

≤2500bottles/hour

7

Machine weight

about 580Kg

8

Dimension (L*W*H)

2000mm*1000mm*1780mm





























Configuration of automatic single head capping machine Model YX-AC45 :

details of single capping machine.jpg

details of single capping machine.jpg

Different sizes of bottles and caps requires different star wheels and the capping heads:

capping head different size bottles.jpg

capping head rotary mould.jpg

Wooden case packing for shipping capping machines:

wooden case packing for capping machinery.jpg
