Mauritius regular customer ordered two packaging machines powder granules packaging system
Published by: PENGLAI INDUSTRIAL CORPORATION
Date:2016-03-24 10:53:57

Our Regular customer in Mauritius ordered machine packaging  (2sets one for milk powder model YX-398D*1set /
the other for granules packaging model YX-500C*1set) has been finished manufacturing recently .
we tested the machine several times before shipping and must give it 120% confirmation that the machine run very well .
The machine now is in great condition .
As well our customer ordered packing machine in 2014 for powder packing is
still in good running .
As below there is basic information for another business cooperation between PENGLAI factory with Maurituis customer:

Bank slip for powder/suger packing machine 2pcs

best food bank slip.jpg

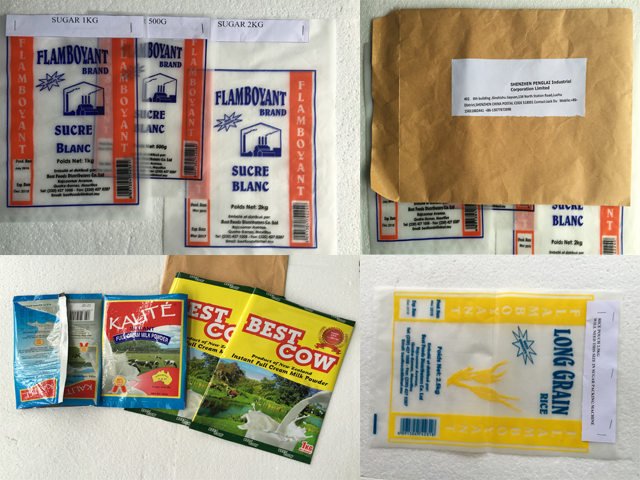

Bags samples sent from customer for packing sugers/powder

sugar bags for packing samples (1).JPG

Testing video of packing machine suger/powder 2pcs

Bags packing samples

bags samples powder.jpg

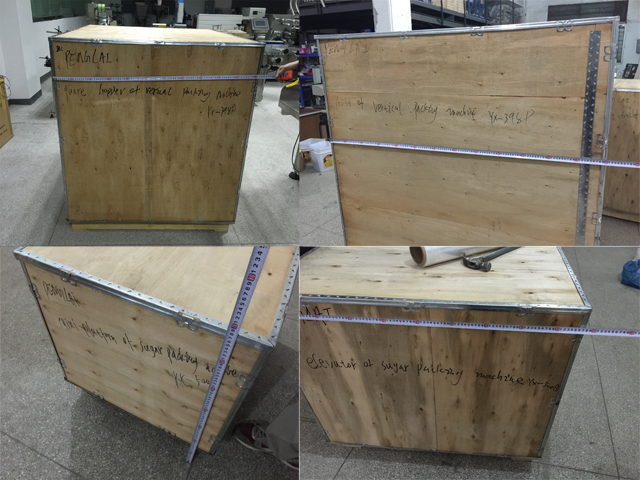

Wooden case

wooden case packing machine suger powder.jpg

Basic description of packing machines

Model YX-500C granules sugar packing machine :

granules packing machines penglai.jpg

This packaging machine adopts high-precision servo motor ,PLC control system ,advanced Siemens touch screen ,automatic photoelectricity orientation track sensor ,digital temperature controller ,make the machine easy to operate ,improve work efficiency and save labor ,can be widely used in various kind of products ,can do form filling ,sealing ,weighing ,date printing with one machine

Technical characteristics:

four linear weigher packing machine.jpg

1.  English and Chinese screen display, operation is simple.

2.  PLC computer system, function is more stable, adjustment any parameters not need stop machine.

3.  It can stock ten dispose, simple to change variety.

4.  Sever motor drawing film, position accurately.

5.  Temperature independent control system, precision get to±1°C.

6.  Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.

7.  Packing type diversification, pillow sealing, standing type, punching etc.

8.  Bag–making, sealing, packing, print date in one operation.

9.  Work circumstance quiet, low noise.

Working flow of packaging machinery :


Technical parameters of granules packing machine model YX-500C

granules packing machines.jpg

drawing of packing machine.jpg

Type

YX-500C

Bag length

50-300mm(L)

Bag width

50-200mm(W)

Max width of roll film

420mm

Packing speed

30-40bags/min

Measuring range

150-1200m

Air consumption

0.65mpa

Gas consumption

0.3m3/min

Power voltage

220VAC/50Hz

Power

2.2 KW

Dimension

1080mm(L)*1300mm(W) *1400mm (H)

Weight

600 Kg

Configuration for packing machines vertical large bag packaging model YX-500

inside packing machine.jpg

Sequence NO.


Name of fitting

Country of origin

Brand

1

Touch screen

Taiwan

WEINVIEW

2

PLC



Japan

Mitsubishi

3

Servo motor including drive

Japan

Panasonic

4

Color standard sensor

Electronic eye



China

Autonics

5

Temperature control meter

China

Yudian

6

Horizontal sealing cylinder

Taiwan

Airtac

7

Vertical sealing with guide bar cylinder

Taiwan

Airtac

8

Cutter thin cylinder

Taiwan

Airtac

9

Push film cylinder

Taiwan

Airtac

10

Two couplet

Taiwan

Airtac

11

Value with gauge



Taiwan

Airtac

12

Electromagnetic valve with disc



Taiwan

MINDMAN

13

Inflatable solenoid valves



Taiwan

MINDMAN

14

Printer

China

XIAMEN TANE

15

Solid state relays

TAI WAN

Schneider

16

Among the relay

Japan

IDEC

17

Switching power supply

Taiwan

YANGJI

18

Stop switch

Japan

IDEC

Components of model YX-500C granules packing machinery

four heads scale for metering.jpg

Model YX-398D powder packing machine for 500g to 2KG Bags

powder filling machinery for Africa customer.jpg

Quotation: FOB (GUANGZHOU or SHENZHEN ) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 30 workdays after getting the down payment 30%,the other 70% payment collected before shipping



Vertical FFS packing machine with auger system for 1kg powder&granules.jpg

Function Description:

AUGER FILLing feeding hopper.jpg

1.Chinese and English language touch screen display, easy to operate.

2.PLC computer control system, working is stable, adjust parameters without stopping 3.the machine.

4.It can save ten parameters, simple to change goods.

5.Adopted to servo system machine drawing film, position accurately.

6.Temperature control system independently, accuracy is within ±1°C.

Application:

Suit for the quantitative weighingof Popcorn, dry pasta, Meatball, Macaroni, hamburgers, oats, washing powder, puffed food, French Fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, hardware and medicine such particle, platy, strip and irregular shape.

Video information from our business youtube site:

1.Host Machine

main machine packaging for powder.jpg

Technical Specifications:

powder packing machine touch screen.jpg

Bag size

L (80-400) ×W (80-250) mm

Packing speed

5-60 bags/min

Measuring range

150-1200 ml

Max width of film roll

520 mm

Air consumption

0.65 mpa

Gas consumption

0.4 m3/min

Power requirement

220 V, 50 HZ, 2.2 KW

Machine size

L 1150 * W 1795 * H 1650 mm

Machine weight

600KG

2.The whole set of auger

whole set of auger filling.jpg

Specification:

Auger feeder:vibration system

Volume: 200L

Dimension:800mm x 1000mm x 1100mm

Auger filler:counting system

Volume:2 kg powder

auger feeding powder system.jpg

3.Finished product conveyor
 final conveyor belt system.jpg

Feature:

Delivery speed: 50m/min   Overall dimensions: 2110 * 400 * 600mm

Voltage: 220V/50W      Structure:carbon steel


 system packaging equipment.jpg

powder packing samples.jpg

Packaging pictures about our machine exported

wooden case packing.jpg

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
